Description And Operation: Description

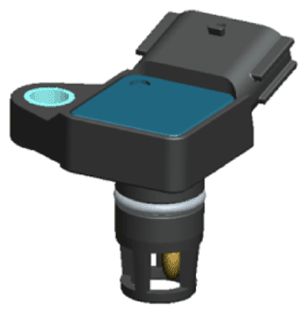

Boost pressure sensor (BPS) is installed on top of intercooler output pipe to measures the pressure of supercharged air in the turbocharger.

G14596337Courtesy of HYUNDAI MOTOR AMERICA
