Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ASSEMBLY ")

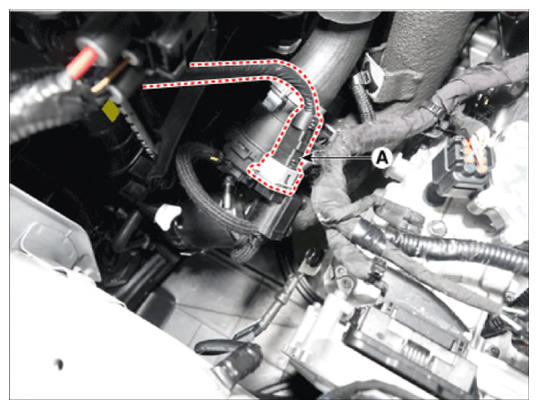

- Disconnect the RCV control solenoid valve connector (A).

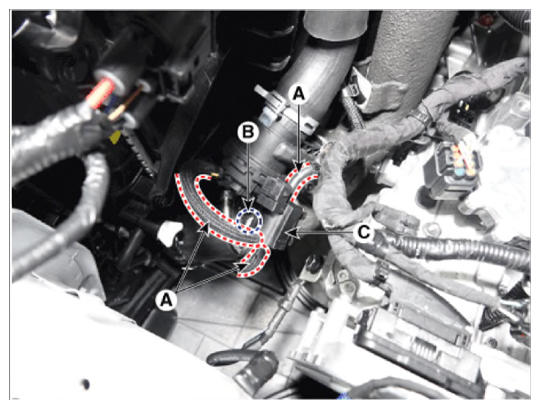

- Remove the vacuum hose (A).
- Remove the RCV control solenoid valve (C), after loosen mounting bolt (B).
Tightening Torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb - ft)
