Repair Procedures: Removal

  1. Remove the air cleaner assembly and air duct.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Remove the battery and battery tray.

    (Refer to Engine Electrical System - "BATTERY ")

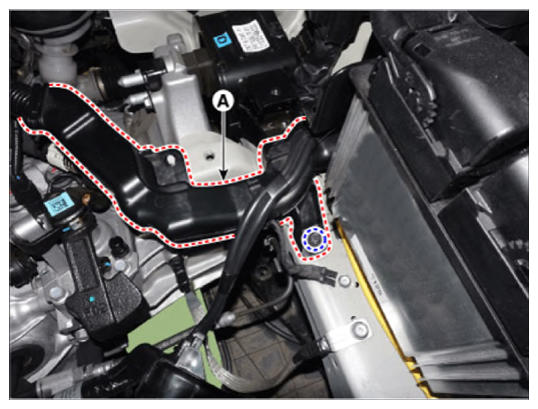

  3. Loosen the bolt and then separate the engine wiring (A).
    G14596634Courtesy of HYUNDAI MOTOR AMERICA

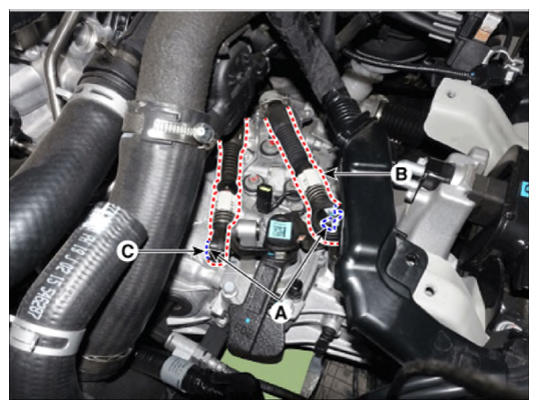

  4. Remove the snap pin (A) and then disconnect the shift cable (B) and the select cable (C) from the control shaft complete.
    G14596635Courtesy of HYUNDAI MOTOR AMERICA

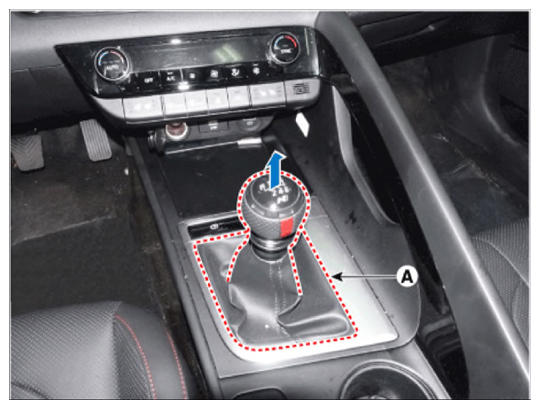

  5. Remove the shift lever knob & boots (A) pull both of it up.
    G14596636Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the floor console assembly.

    (Refer to Body - "FLOOR CONSOLE ")

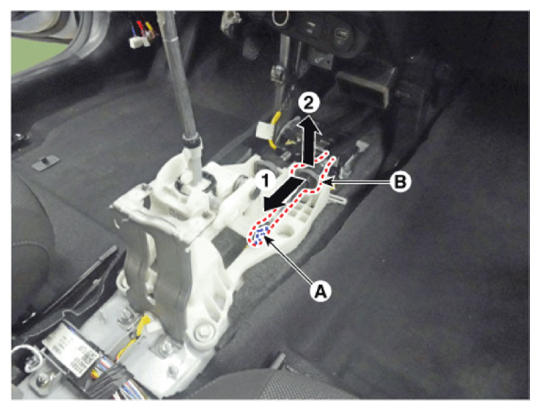

  7. Remove the snap pin (A) and then separate the select cable (B).
    G14596637Courtesy of HYUNDAI MOTOR AMERICA

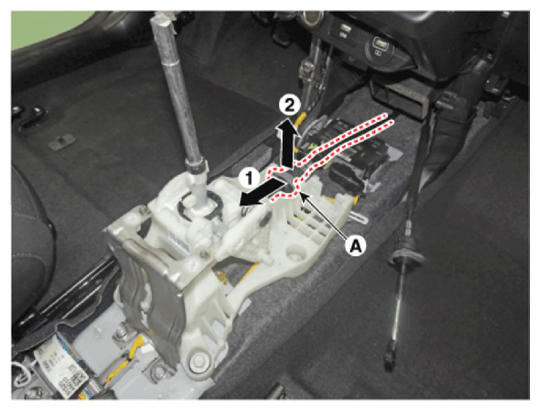

  8. Separate the cable socket (A) from the shift lever, after release the lock.
    G14596638Courtesy of HYUNDAI MOTOR AMERICA

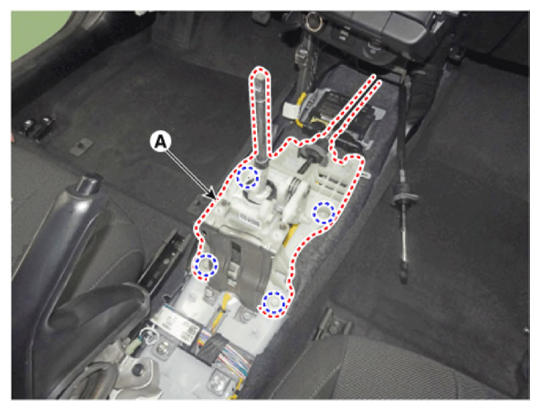

  9. Loosen the bolts and then disconnect the shift lever (A).
    G14596639Courtesy of HYUNDAI MOTOR AMERICA

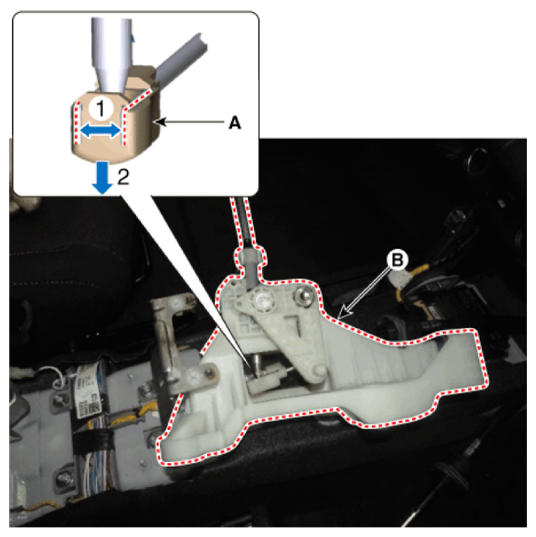

  10. Remove the shift cable (A) and shift lever (B) by spreading the clips on both sides of the cable end.
    G14596640Courtesy of HYUNDAI MOTOR AMERICA

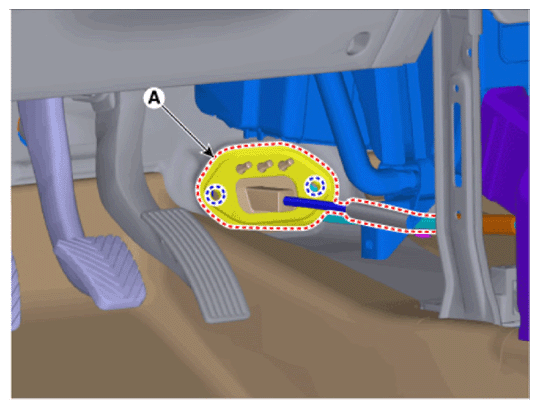

  11. Loosen the nuts (A) and then removing the retainer (B).
    G14596641Courtesy of HYUNDAI MOTOR AMERICA

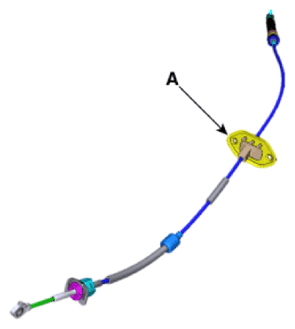

  12. Remove the control cable assembly (A) from the vehicle.
    G14596642Courtesy of HYUNDAI MOTOR AMERICA
