Variant Coding

  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the diagnostic tool.

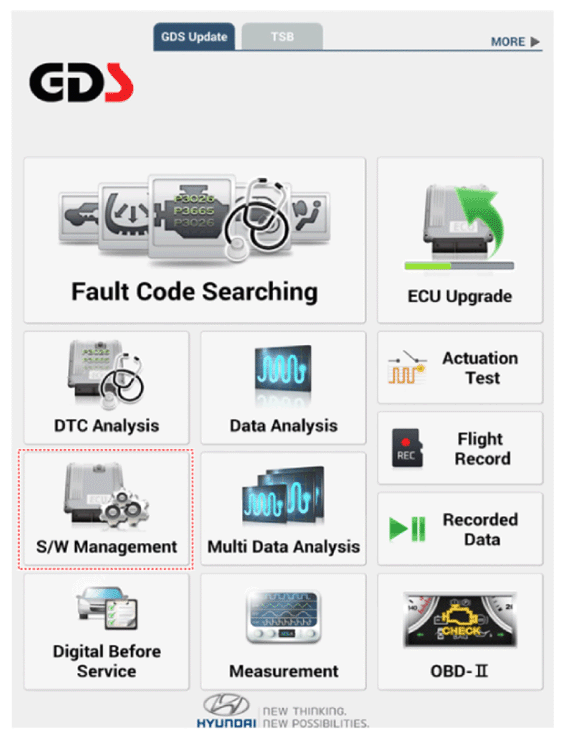

  2. Select the "S/W Management" and "Car model".
    G14596916Courtesy of HYUNDAI MOTOR AMERICA

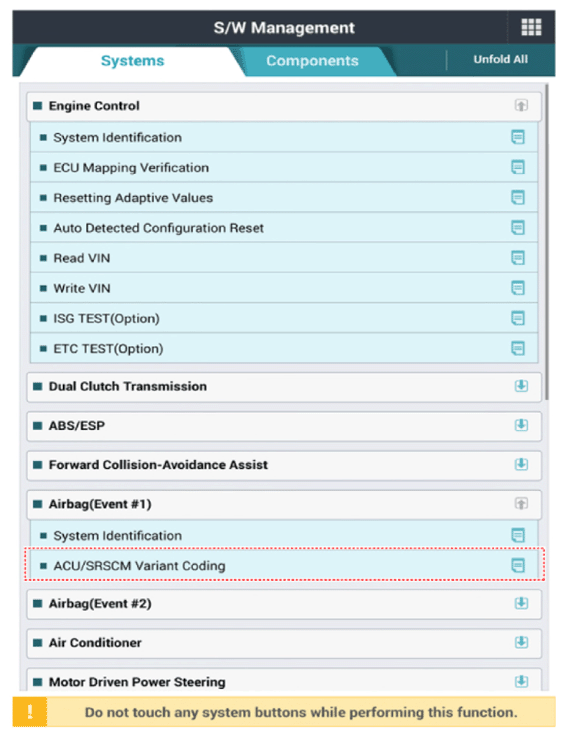

  3. Select "Airbag" and "ACU/SRSCM Variant Coding".
    G14596917Courtesy of HYUNDAI MOTOR AMERICA

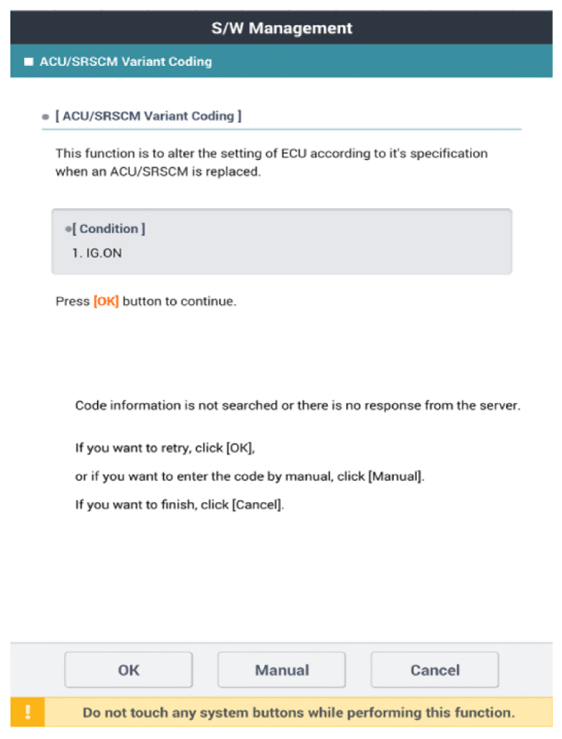

  4. Perform the "ACU/SRSCM Variant Coding" procedure according to the GDS screen message.
    G14596918Courtesy of HYUNDAI MOTOR AMERICA
