Components Location

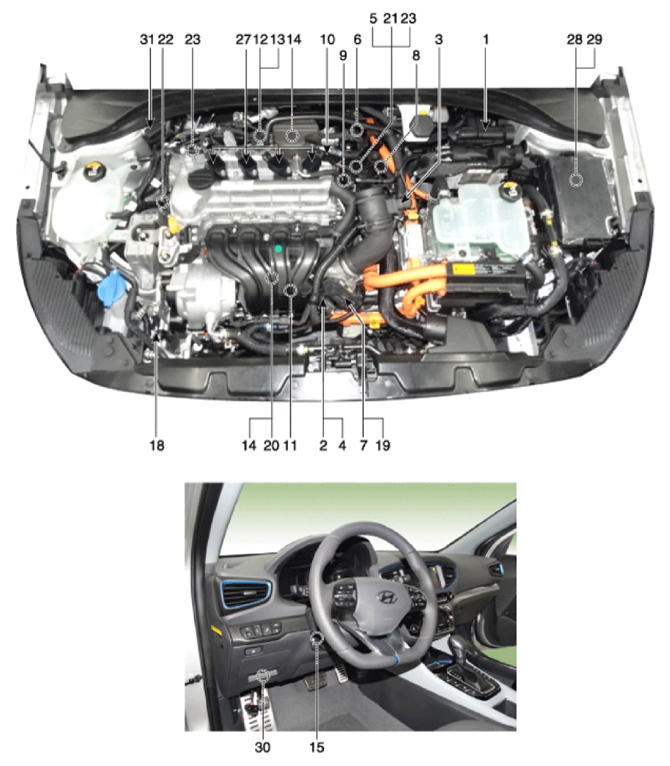

G13843202Courtesy of HYUNDAI MOTOR AMERICA

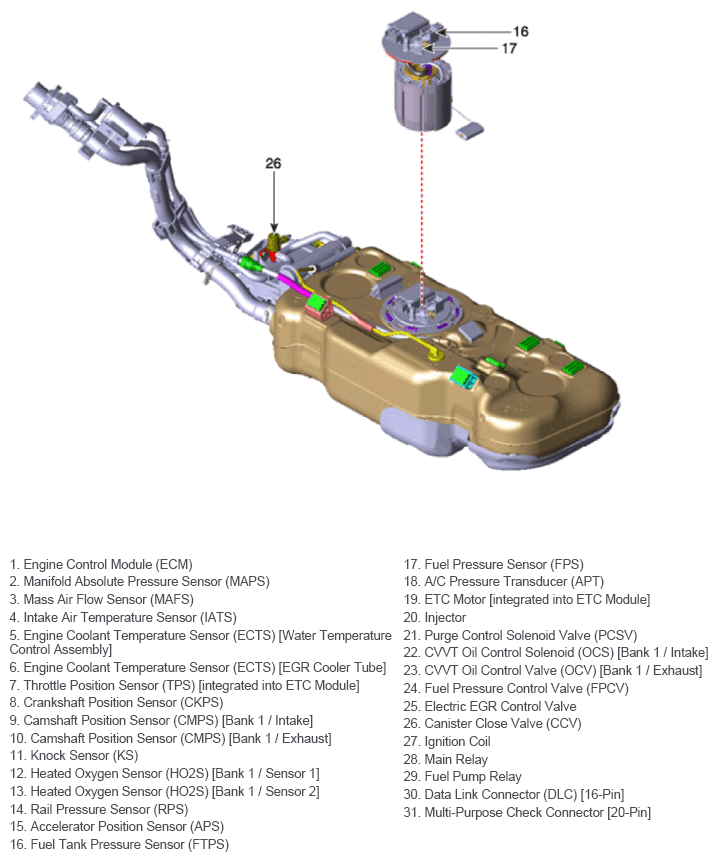

G13843203Courtesy of HYUNDAI MOTOR AMERICA

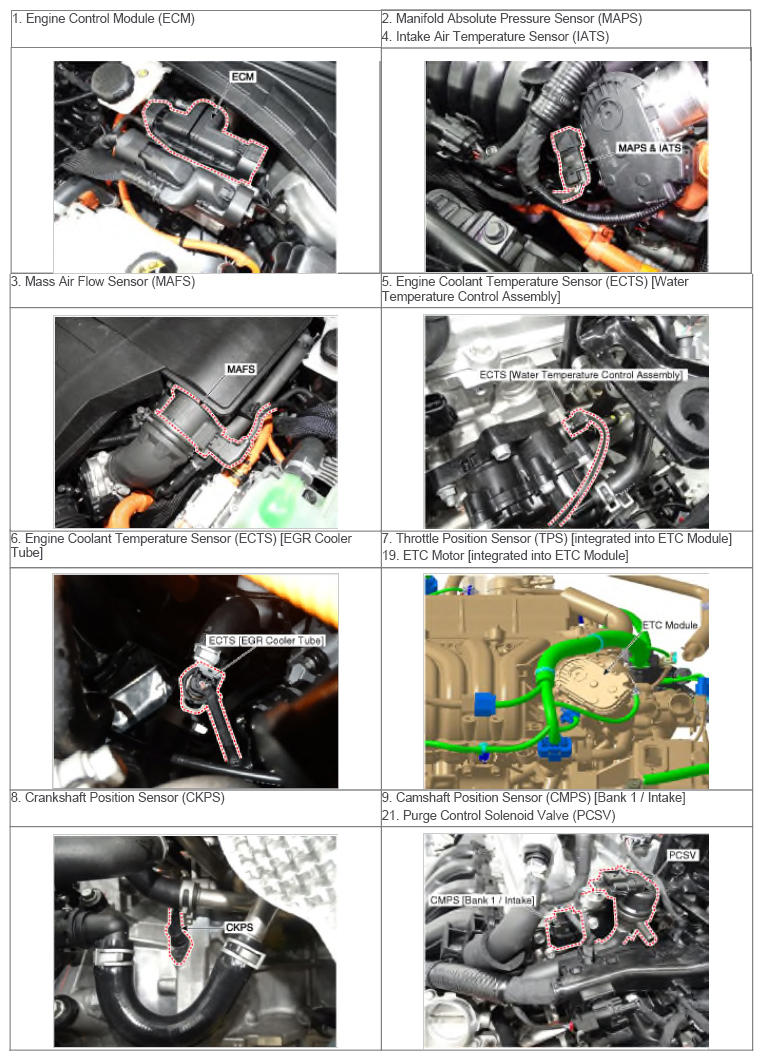

G13843204Courtesy of HYUNDAI MOTOR AMERICA

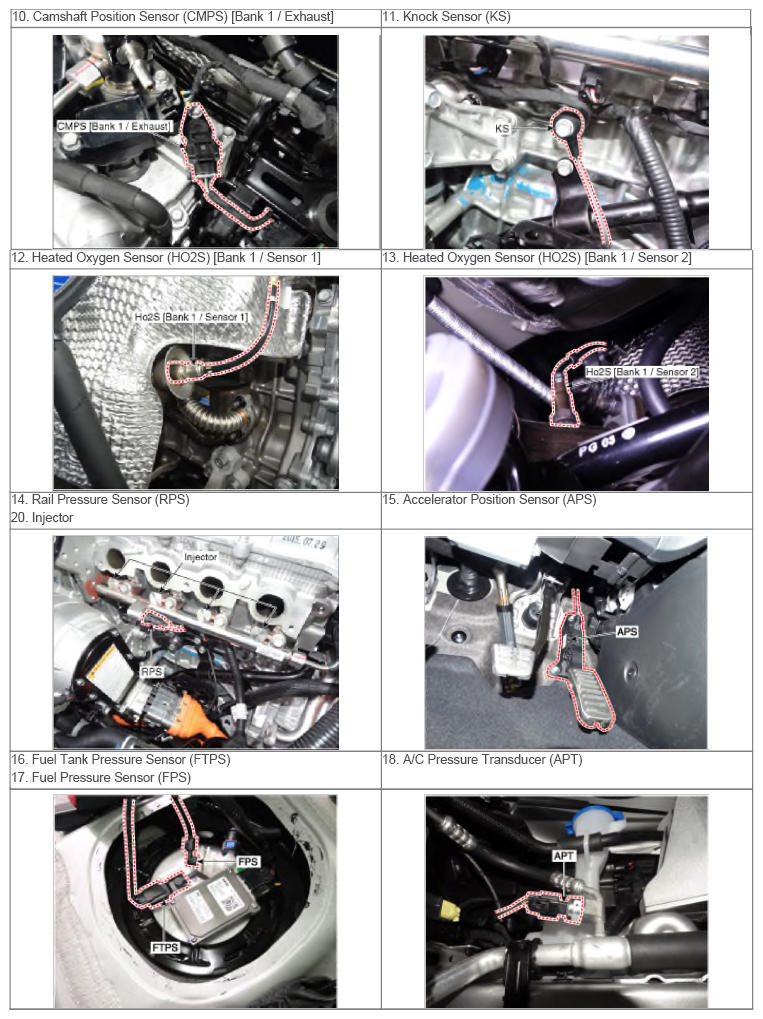

G13843205Courtesy of HYUNDAI MOTOR AMERICA

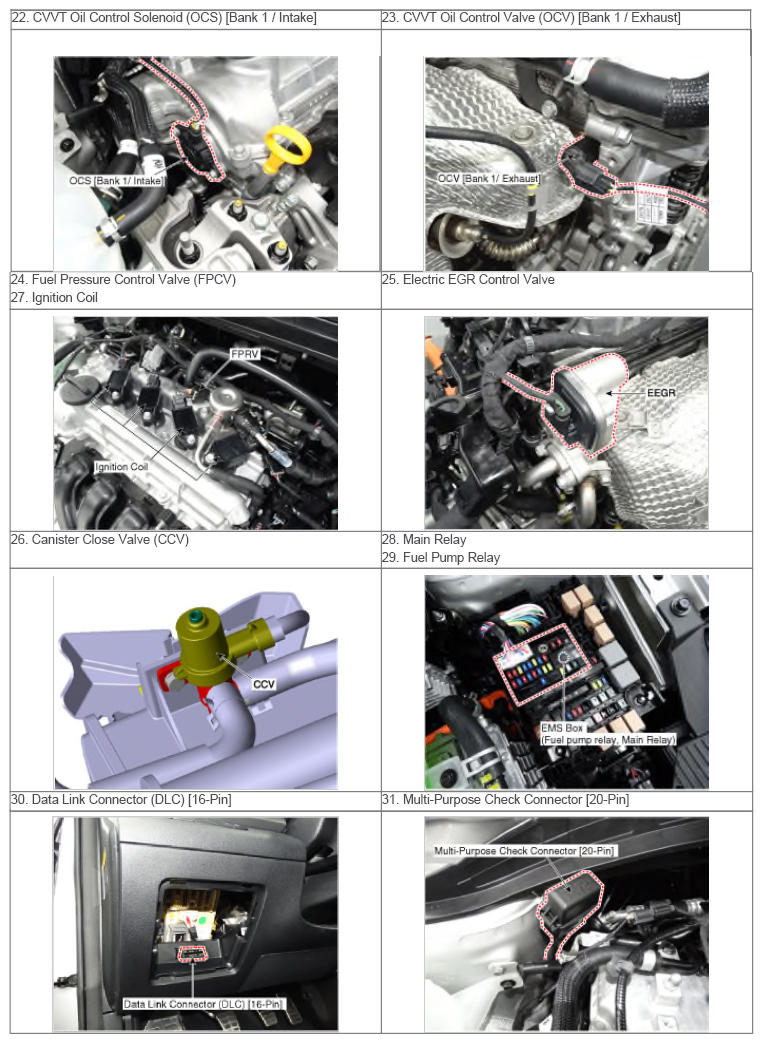

G13843206Courtesy of HYUNDAI MOTOR AMERICA
