Repair Procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
Remove the air cleaner assembly and air intake hose.
(Refer to Engine Mechanical System - "AIR CLEANER ")

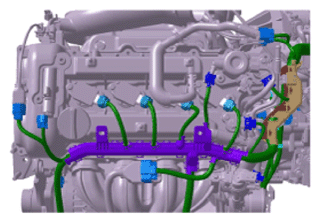

Remove the engine wiring.

Courtesy of HYUNDAI MOTOR AMERICA

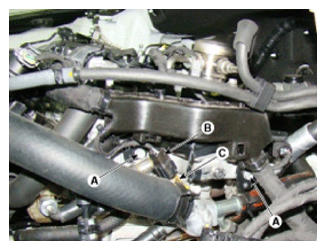

Remove the vacuum pipe mounting bolts (A) and make a gap by moving the bracket.
Disconnect the engine coolant temperature sensor connector (B).
Remove the engine coolant temperature sensor (C).

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
Fill with engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")
