Repair Procedures: Removal

  1. Oil-Pressure Characteristics Backup (TCM Exchange).

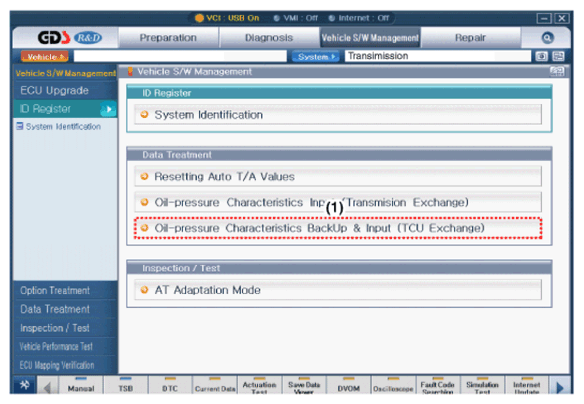

    G12607199Courtesy of HYUNDAI MOTOR AMERICA

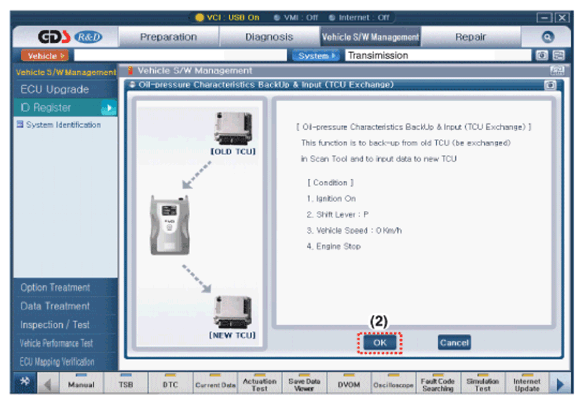

    G12607200Courtesy of HYUNDAI MOTOR AMERICA

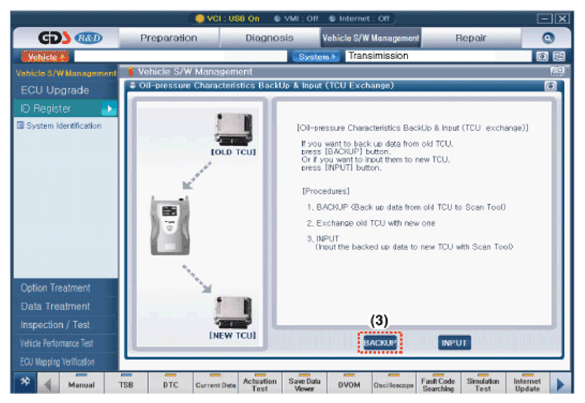

    G12607201Courtesy of HYUNDAI MOTOR AMERICA
  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the battery.

    (Refer to Engine Electrical System - "BATTERY ")

  4. Disconnect the TCM connector (A).
  5. Remove the TCM (B).

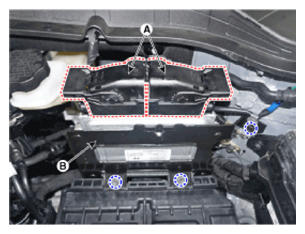

    G12607202Courtesy of HYUNDAI MOTOR AMERICA
