Repair Procedures: Removal

  1. Remove the front bumper cover.

    (Refer to Body - "FRONT BUMPER COVER ")

  2. Remove the bolts and disconnect the horn connectors (C), then remove the high pitch horn (B) and low pitch horn (A).

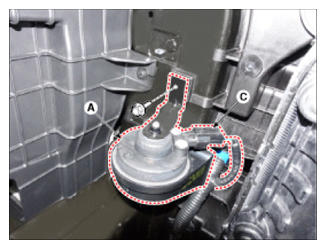

G14427181Courtesy of HYUNDAI MOTOR AMERICA

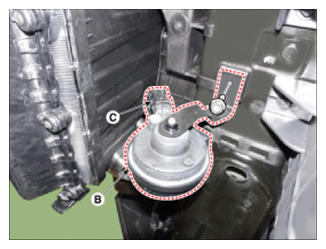

G14427182Courtesy of HYUNDAI MOTOR AMERICA
