Repair Procedures: Removal
- Turn the ignition switch OFF.

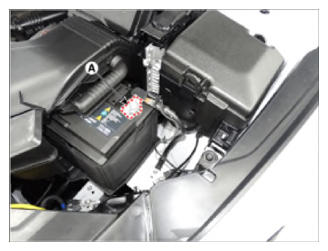

- Disconnect the battery negative (-) terminal (A).
Battery negative (-) terminal tightening nut:
7.8 - 9.8 N.m (0.8 - 1.0 kg.m, 5.2 - 8.7 lb-ft)
- Disconnect the battery sensor connector (A).
- Remove the battery sensor after loosening the sensor cable flange mounting bolts (B).
Battery sensor cable flange mounting bolt (Chassis ground):
26.5 - 35.3 N.m 2.7 - 3.6 kgf.m, 19.5 - 26.0 lb-ft)
