Terminal Function: 400W

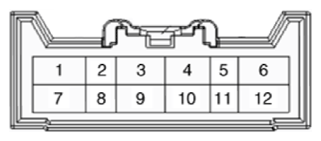

G14423964Courtesy of HYUNDAI MOTOR AMERICA
Pin Description
1 -
2 IGN1 input
3 -
4 -
5 ACC input
6 -
7 Battery power (B+) input
8 ISG signal input
9 Ground
10 Ground
11 ACC output
12 Battery power (B+) output
