Repair Procedures: Removal: Notes
NOTE:
- Be careful that no contaminant enters into spark plug holes.

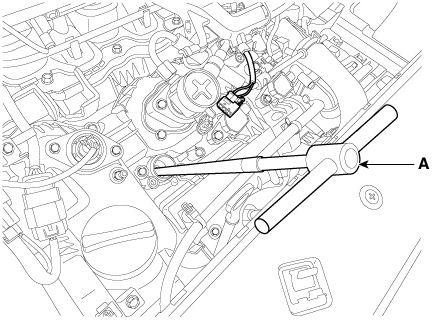

- Use the spark plug wrench (A) to prevent the damage on the spark plug.
 Courtesy of HYUNDAI MOTOR AMERICA
|
NOTE:
- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
 Courtesy of HYUNDAI MOTOR AMERICA
|
