Removal and Installation: Buzzer

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guard.

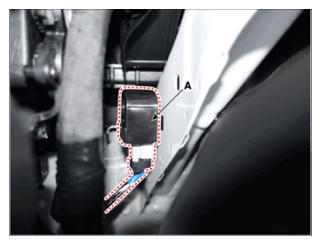

  3. Disconnect the connectors, then remove the buzzer (A).
    G15473279Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
