Repair Procedures: Removal

WARNING: This page is about a different car, the 2023 Hyundai Palisade. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front tires straight-ahead.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Put a flat tool (05 mm) into a guide hole located in the bottom of steering wheel and press a DAB fastening pin.

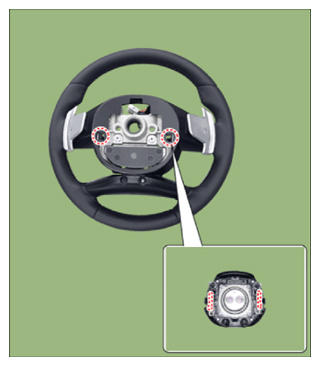

    G15478103Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Rotate the tool in the direction of the arrow to release the DAB fastening pin.

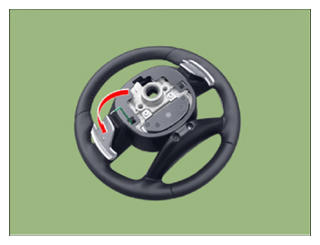

    G15478104Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the DAB connectors (A) and horn connector (B).

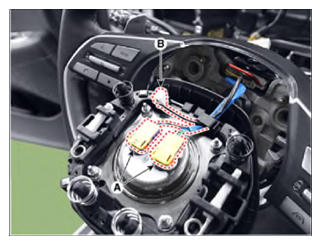

    G15478105Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the steering wheel.

    (Refer to Steering System - "REPAIR PROCEDURES ")

  6. Loosen the steering wheel column shroud panel.

    (Refer to Body - "STEERING WHEEL COLUMN SHROUD PANEL ")

  7. Disconnect the clock spring connector (A).

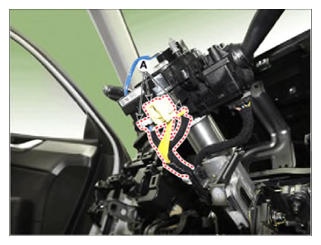

    G15478106Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the clock spring (A).

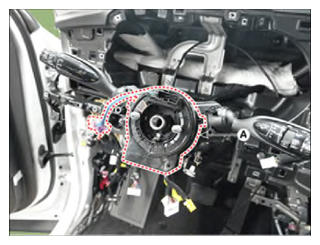

    G15478107Courtesy of HYUNDAI MOTOR AMERICA
