Description & Operation: Description

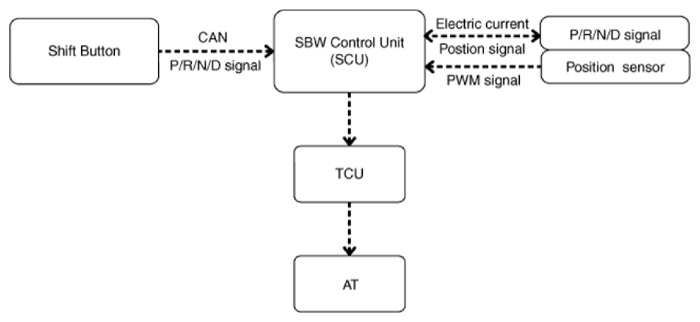

Controls the 4 position of P (Parking), R, N, D using the rotation of the motor of according to the electric signal when the shift button is operated.

G14424319Courtesy of HYUNDAI MOTOR AMERICA
