Description & Operation: Description

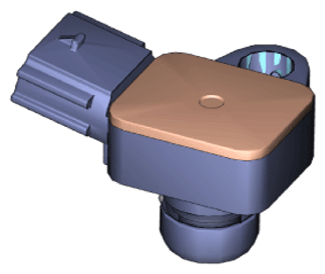

Boost pressure sensor (BPS) is installed on top of intercooler output pipe to measure the absolute intake manifold pressure.

G14537792Courtesy of HYUNDAI MOTOR AMERICA
