Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air duct (A).
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the intercooler inlet hose and pipe.
(Refer to Engine Mechanical System - "INTERCOOLER ")
- Remove the intercooler outlet hose and pipe.
(Refer to Engine Mechanical System - "INTERCOOLER ")

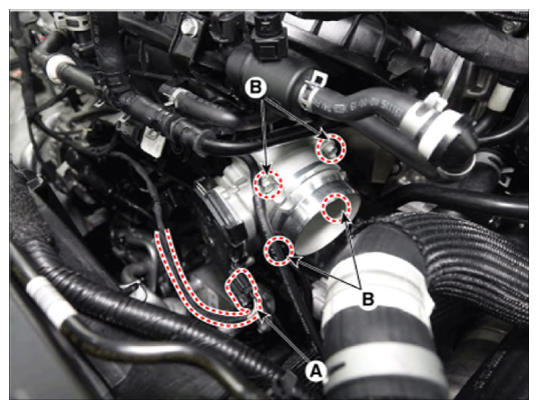

- Disconnect the ETC module connector (A).
- Remove the installation bolt (B), remove the ETC module from the engine.
Tightening torque: 8.8 - 10.7 N.m (0.9 - 1.1 kgf.m, 6.5 - 7.9 lb-ft)
