EGR Temperature Sensor
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Lift up the vehicle.
- Remove the engine room under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

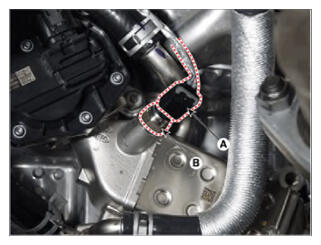

- Disconnect the egts connector (A).
- Remove the EGR temperature sensor (B).
Tightening torque:
29.4 - 39.2 N.m (3.0 - 4.0 kgf.m, 21.7 - 28.9 lb-ft)
