Components Location

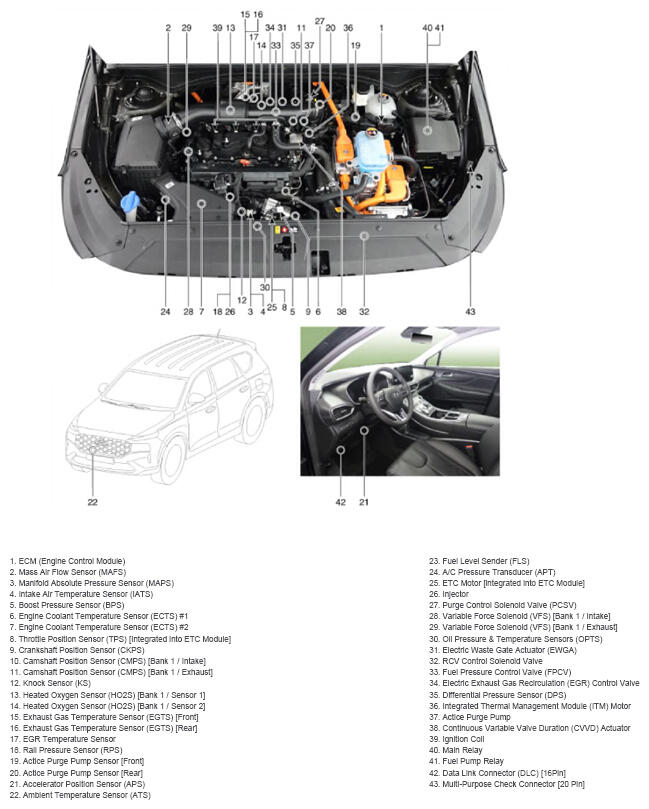

G16112087Courtesy of HYUNDAI MOTOR AMERICA

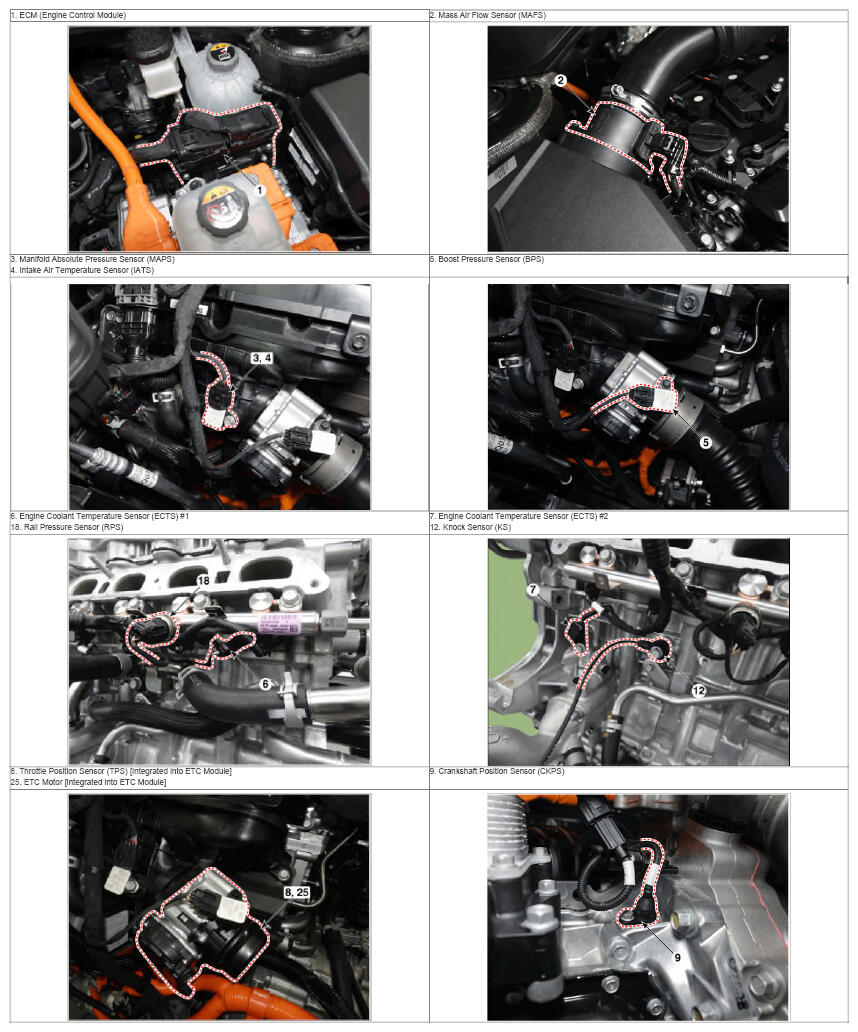

G16112088Courtesy of HYUNDAI MOTOR AMERICA

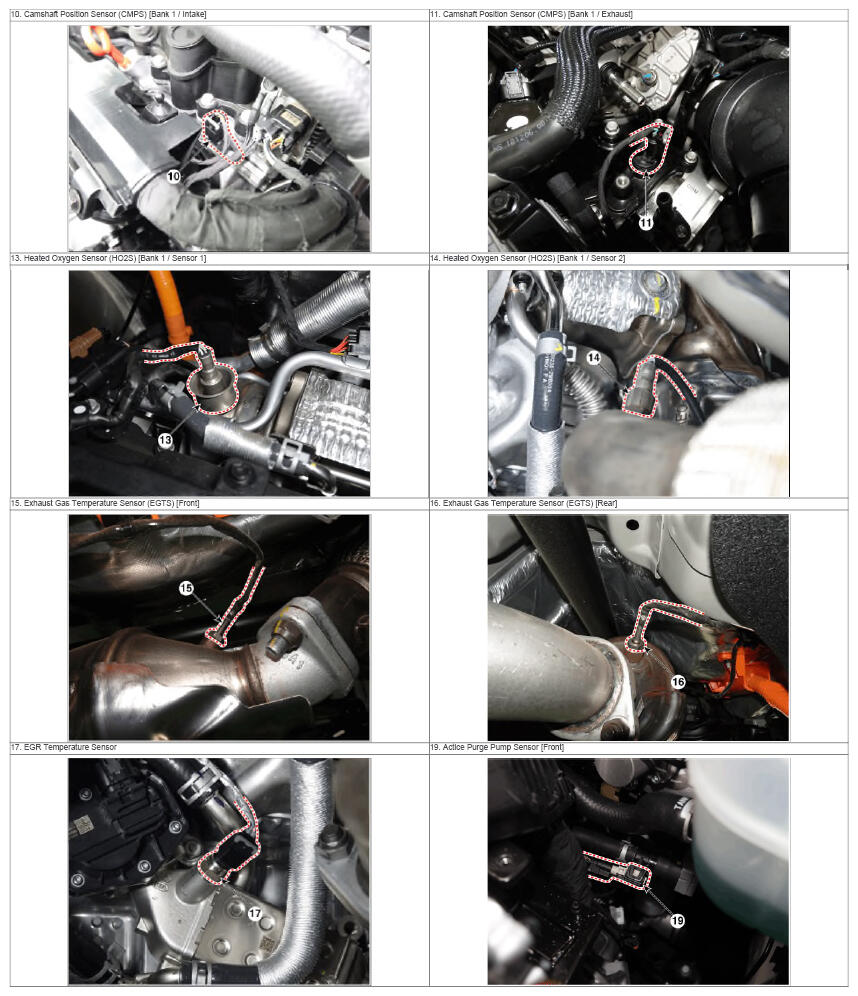

G16112089Courtesy of HYUNDAI MOTOR AMERICA

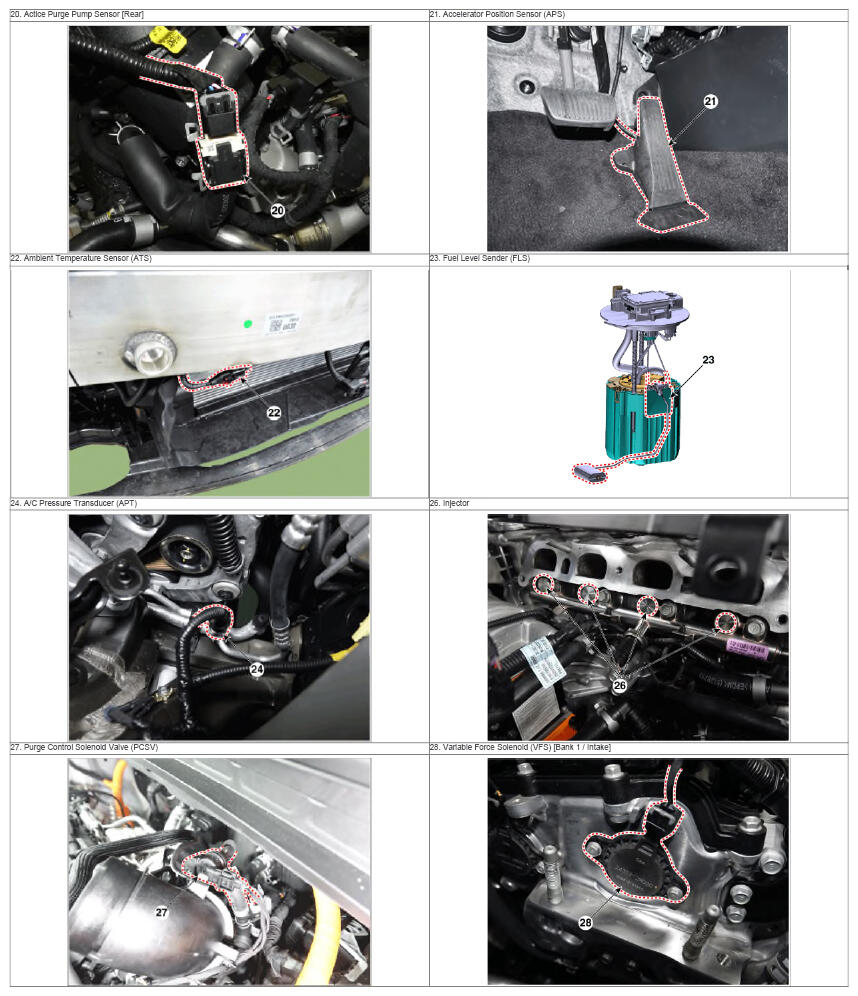

G16112090Courtesy of HYUNDAI MOTOR AMERICA

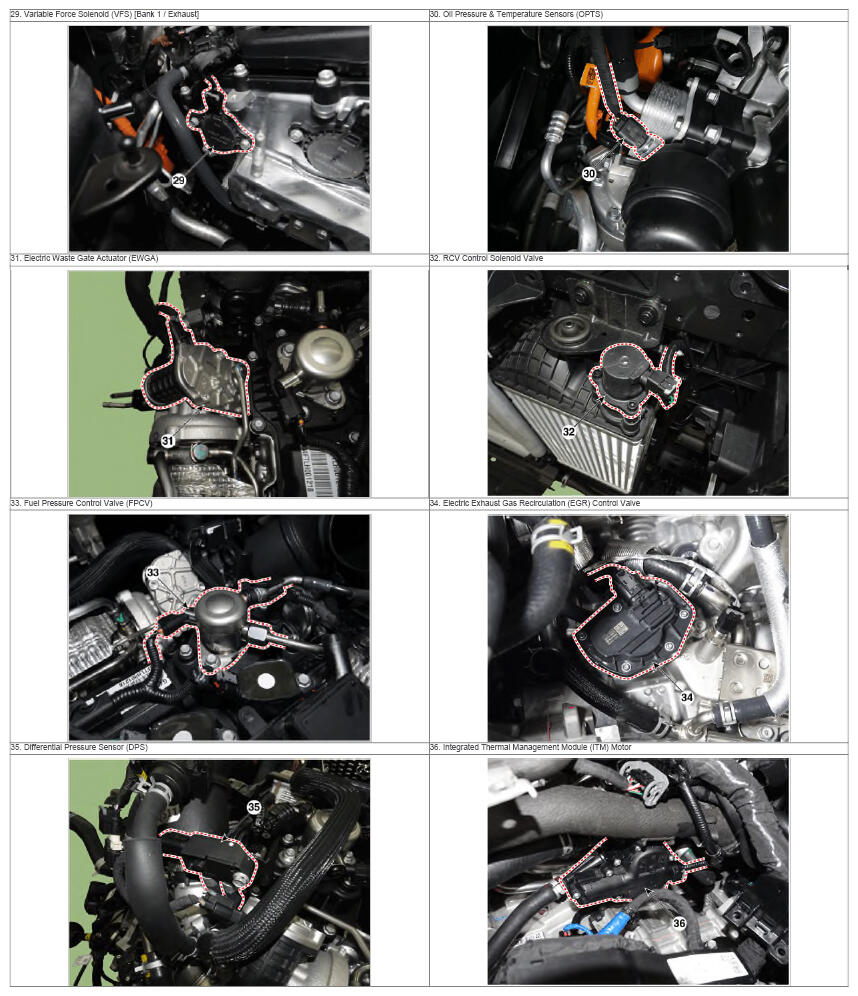

G16112091Courtesy of HYUNDAI MOTOR AMERICA

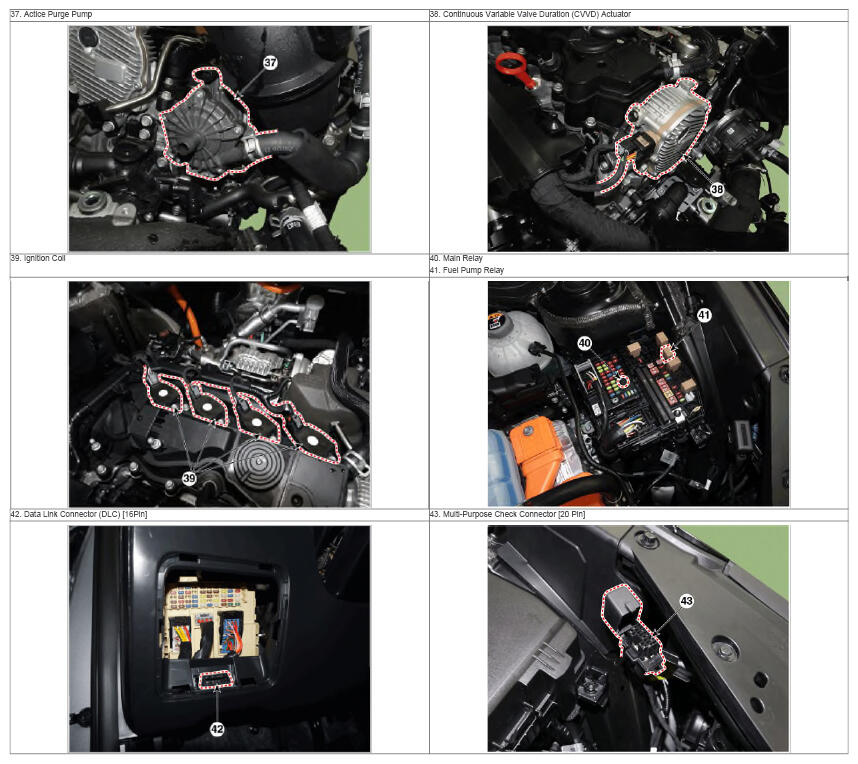

G16112092Courtesy of HYUNDAI MOTOR AMERICA
