Throttle Position Sensor (TPS)
Type: IC Rotate Sensor Type

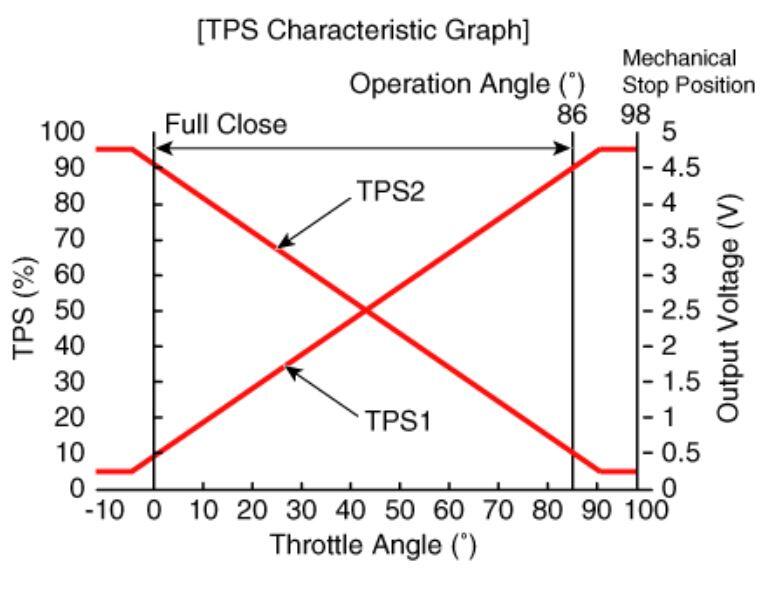

Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
