Components And Components Location: Components

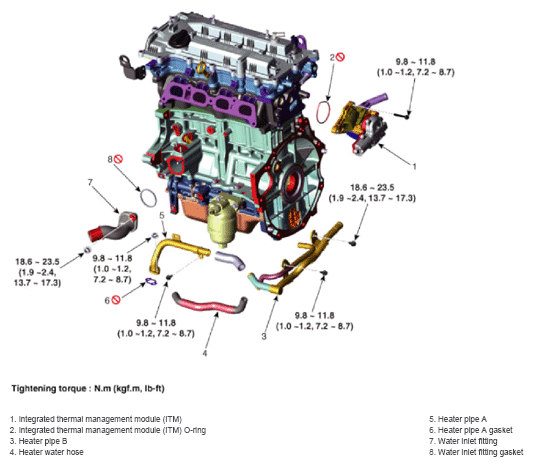

Fig 1: Thermal Management Module Motor Components Location With Torque Specifications
G16112254Courtesy of HYUNDAI MOTOR AMERICA
