Repair Procedures: Installation
NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- When installing the throttle body, be careful not to get foreign material into the throttle body.
- Install in the reverse order of removal.

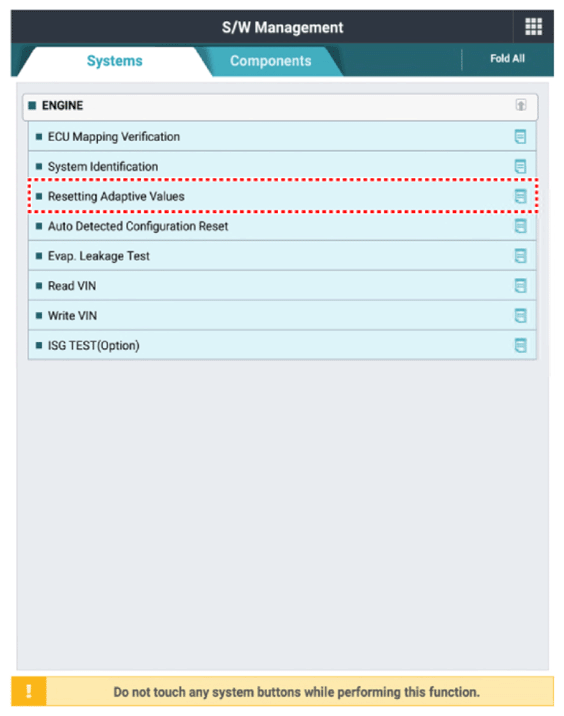

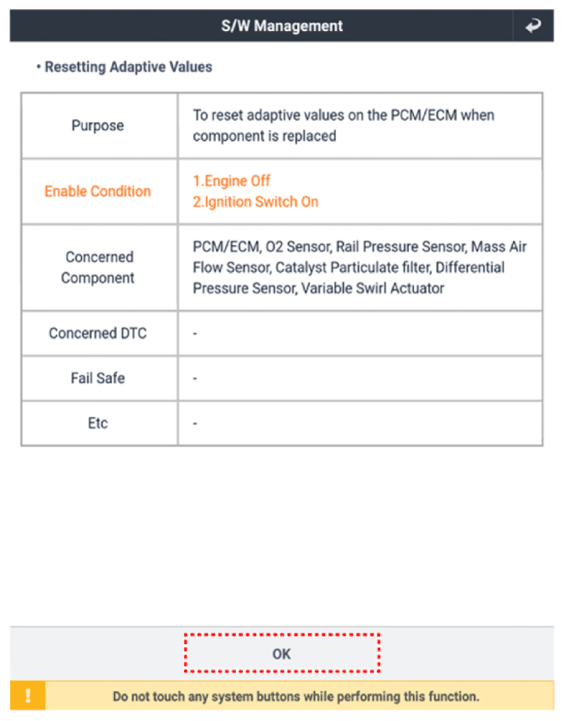

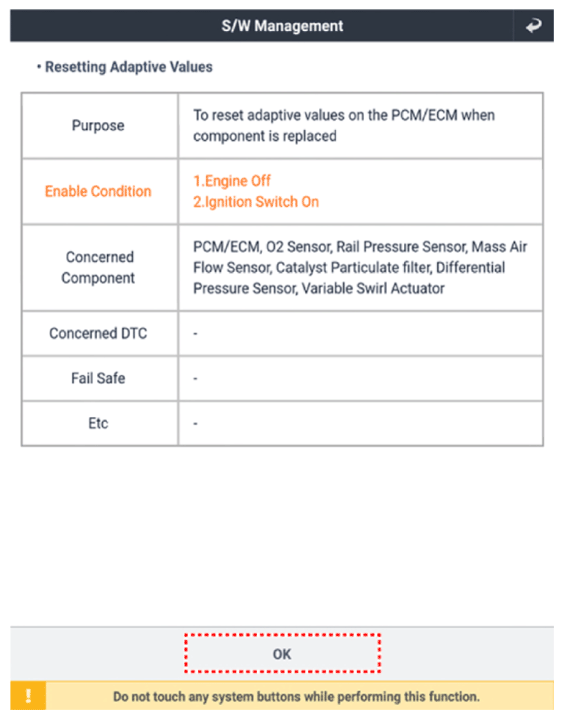

- Reset the ECM adaptive values after replacing the ETC.
- Perform the ETC learning procedure
(Refer to ETC System - "ADJUSTMENT ")
