Repair Procedures: Installation
NOTE:
- Install the component with the specified torques.
- Note that internal damage may occur when the component is dropped. If the component has been dropped, inspect before installing.
- Insert the sensor in the installation hole and be careful not to damage.

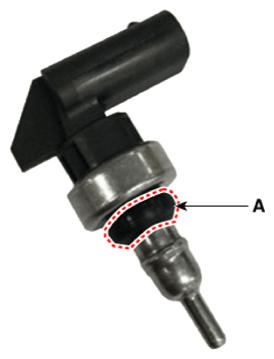

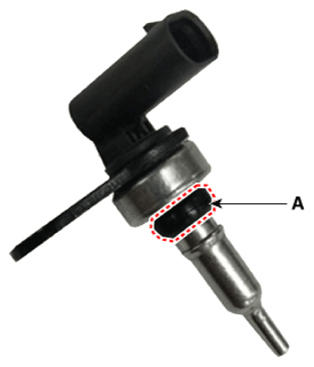

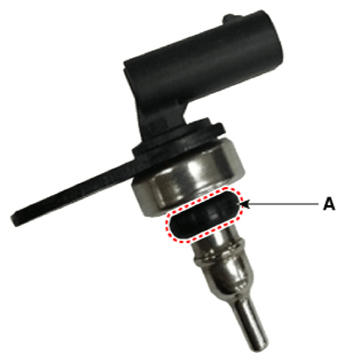

- Apply the engine coolant to the O-ring (A).
[ITM Side]
[Water Pump Side]
[Cylinder Block Side]

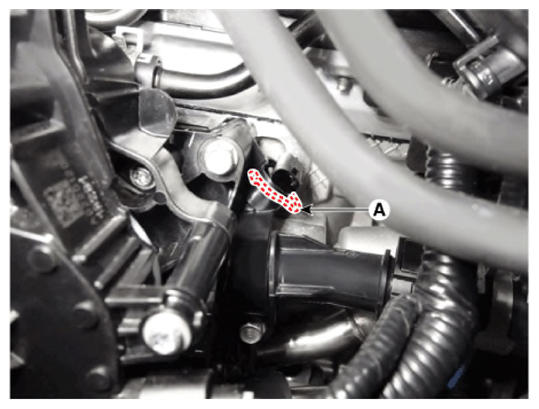

- Do not reuse the fixing clip (A).
- Install in the reverse order of removal.
- Supplement the engine coolant.
(Refer to Engine Mechanical System - "COOLANT ")
