Oil Pressure Sensor (OPS): Specifications

Pressure		Output Voltage (V) [Vref=5V]	Initial Condition
bar	[MPa (kgf/cm² )]	Output Voltage (V) [Vref=5V]	Initial Condition
0.5	0.05 (0.5)	0.3 ± 0.06	0.3 ± 0.04
1	0.1 (1.0)	0.5 ± 0.06	0.5 ± 0.04
6	0.6 (6.1)	2.5 ± 0.06	2.5 ± 0.04
11	1.1 (11.2)	4.5 ± 0.06	4.5 ± 0.04

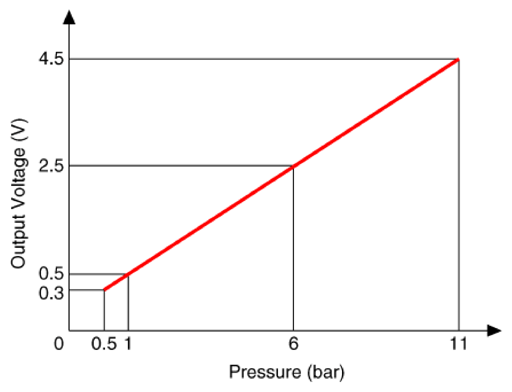

G14534352

Courtesy of HYUNDAI MOTOR AMERICA
