Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the (+) battery cable.
  2. Remove the Shift by wire Control Unit (SCU).

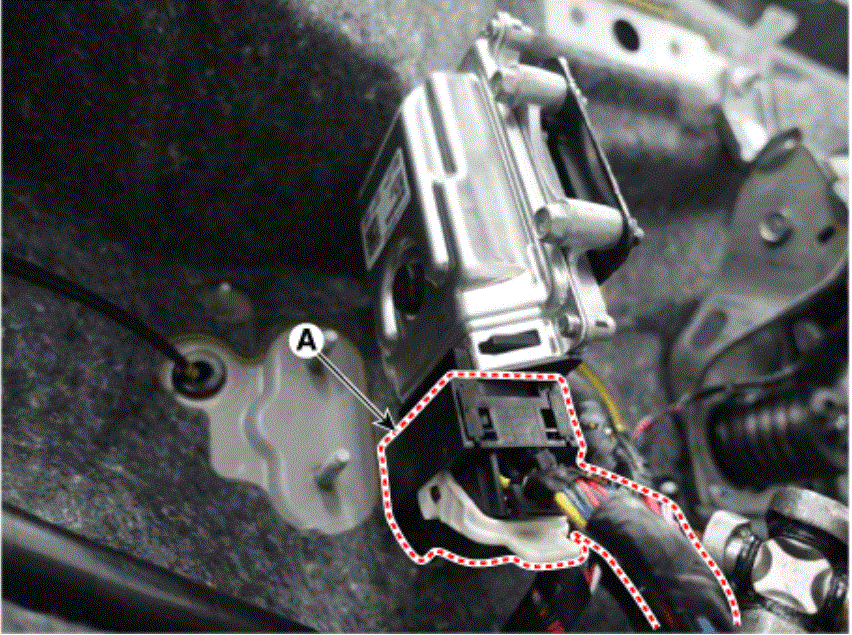

    1. Disconnect the connector (A).
      G15460724Courtesy of HYUNDAI MOTOR AMERICA

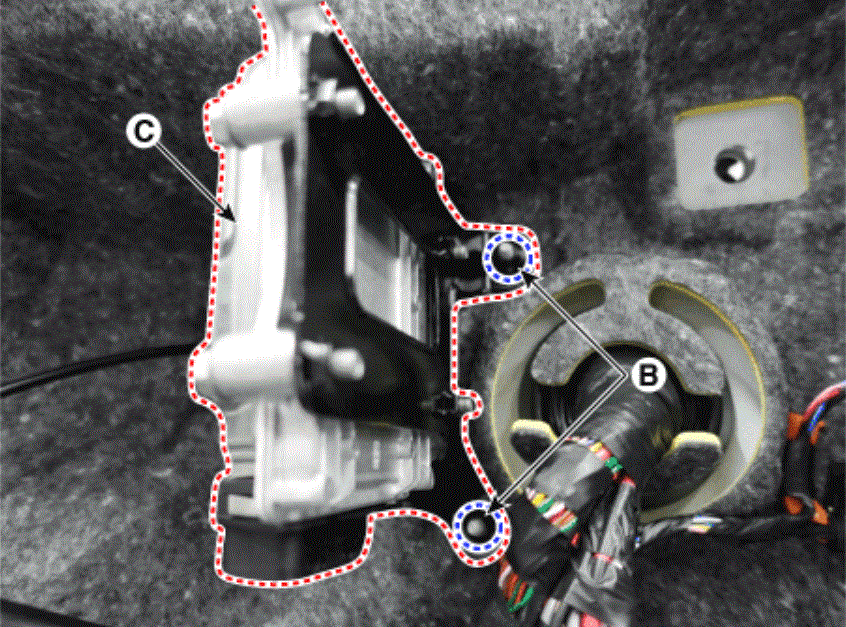

    2. Loosen the bolts (B) and then removing the SCU (C).
      G15460725Courtesy of HYUNDAI MOTOR AMERICA
