Repair Procedures: Removal

CAUTION:

When the solenoid valve Diagnostic Trouble Codes (DTC) is on, perform the following procedure to replace it.
Automatic transaxle is composed of delicate components. Be careful not to cause any damage on the component in the course of assembly and disassembly.
Maintain clean condition so that foreign substance does not get into the automatic transaxle.
Use a coated apron, latex gloves, and stainless tray to prevent foreign substance from getting into the transaxle.
Automatic transaxle fluid (ATF) can be reused. Collect it using a clean 10-liter beaker.

Shut off the high voltage circuit. (Refer to HIGH VOLTAGE SHUT-OFF PROCEDURES
Remove the under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant. (Refer to Engine Mechanical System - "COOLANT ")
Drain the coolant of hybrid motor cooling system. (Hybrid Motor System - "COOLANT ")

Remove the TCM.

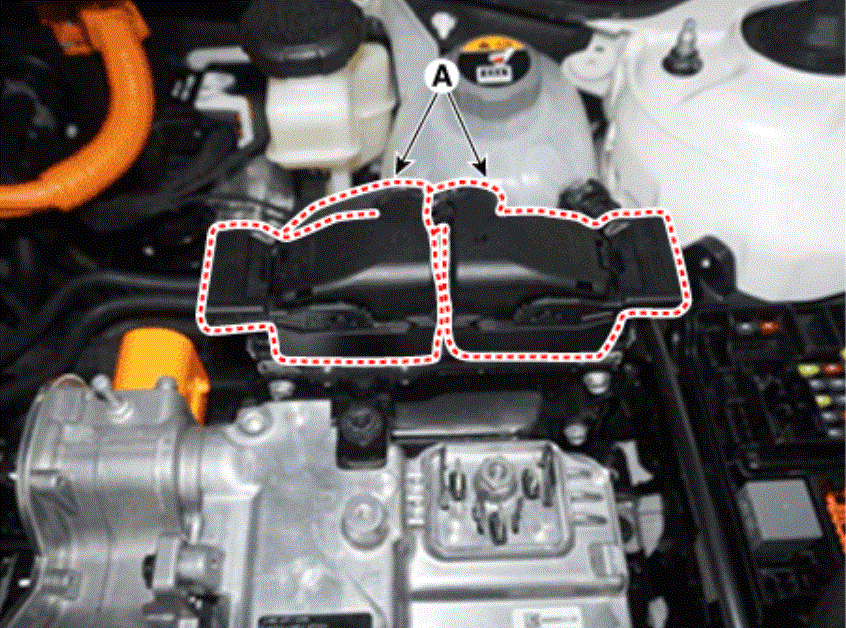

Disconnect the TCM connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

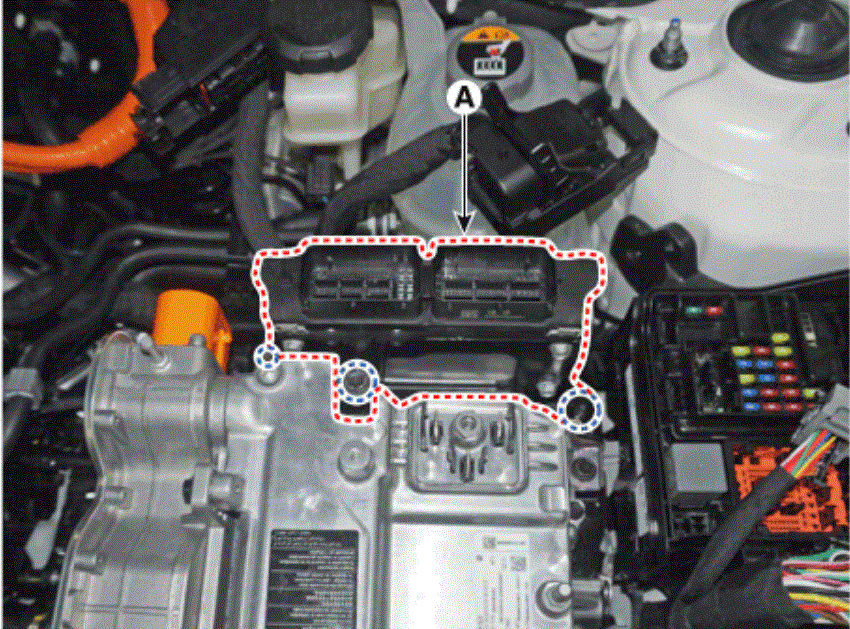

Remove the TCM (A) after loosening the bolts and nut.

Courtesy of HYUNDAI MOTOR AMERICA

Remove the Hybrid Power Control Unit (HPCU) assembly. (Refer to Hybrid control system - "HPCU ")

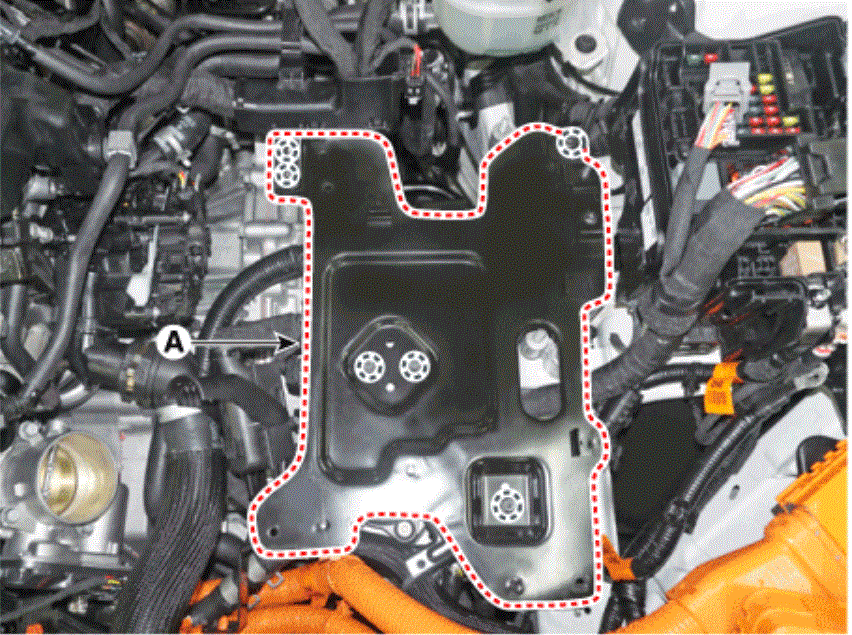

Remove the Hybrid Power Control Unit (HPCU) tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

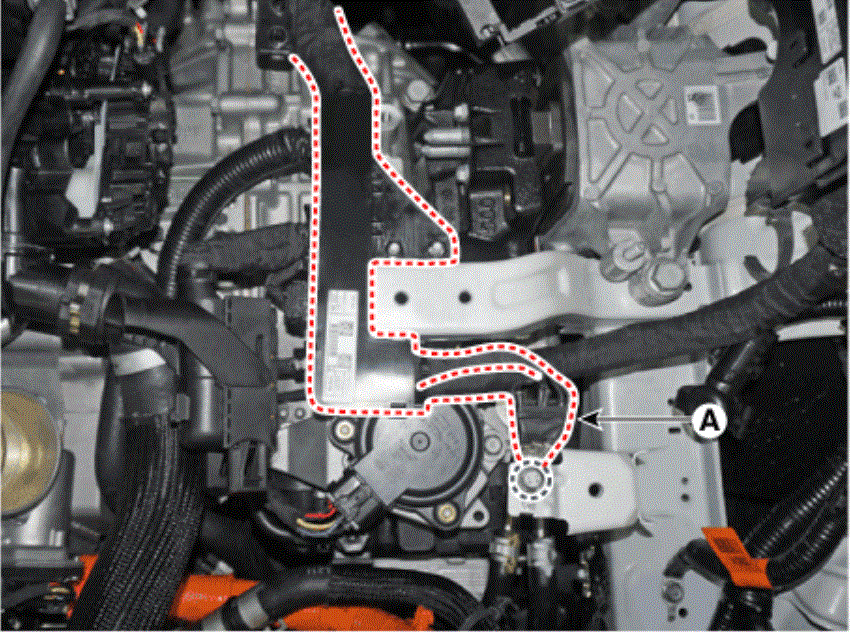

Loosen the ground line bolt and then removing the wiring (A).

Courtesy of HYUNDAI MOTOR AMERICA

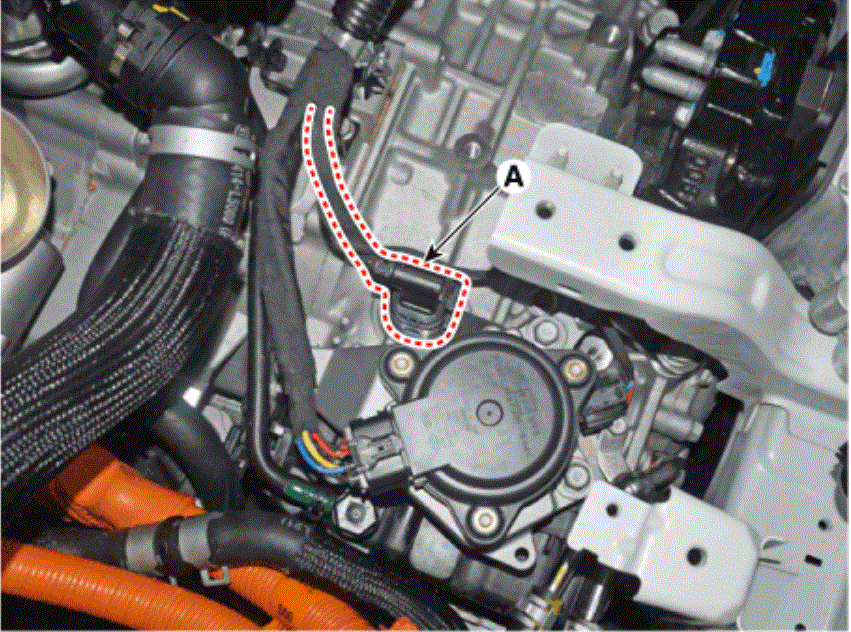

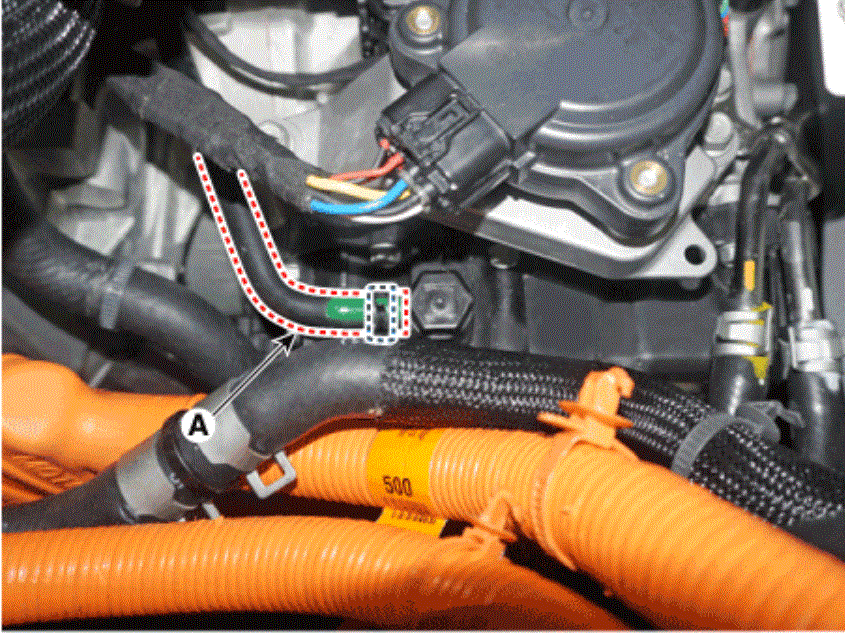

Separate the air bleeder hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

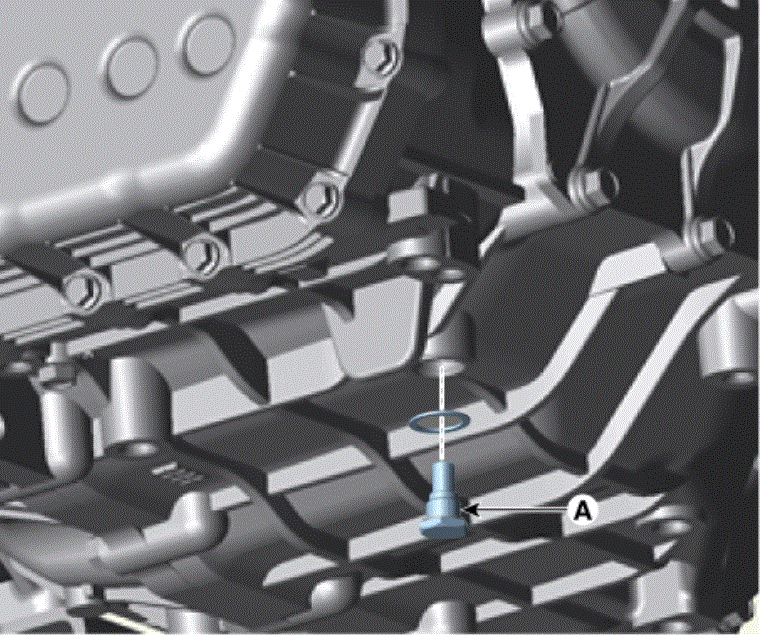

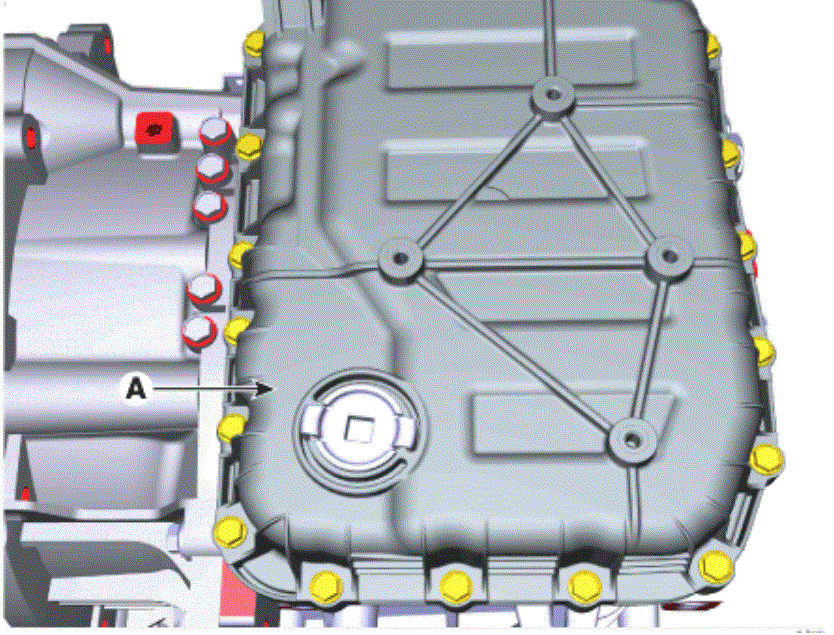

Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.
Drain plug tightening torque:

34.3 - 43.1 N.m (3.5 - 4.4 kgf.m, 25.3 - 31.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Replace the gasket before reinstalling the drain plug.
Remove the bracket (A) after loosening the bolts.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the ATF warmer. (Refer to Automatic Transaxle Cooling System - "ATF WARMER ")
Loosen the mounting bolts of the valve body cover (A).
Tightening torque:

11.8 - 13.7 N.m (1.2 - 1.4 kgf.m, 8.7 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful when removing the valve body cover because the remaining ATF remains in the valve body cover.
CAUTION:
- Replace the gasket (A) before reinstalling the valve body cover.
- After the installation, start the engine and then check if there are any leakages from the valve body cover.
Loosen the bolts and then removing the main harness (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Check for the looseness, poor connection, bending, corrosion, contamination, deterioration, or damage before reinstalling the solenoid valve connector.

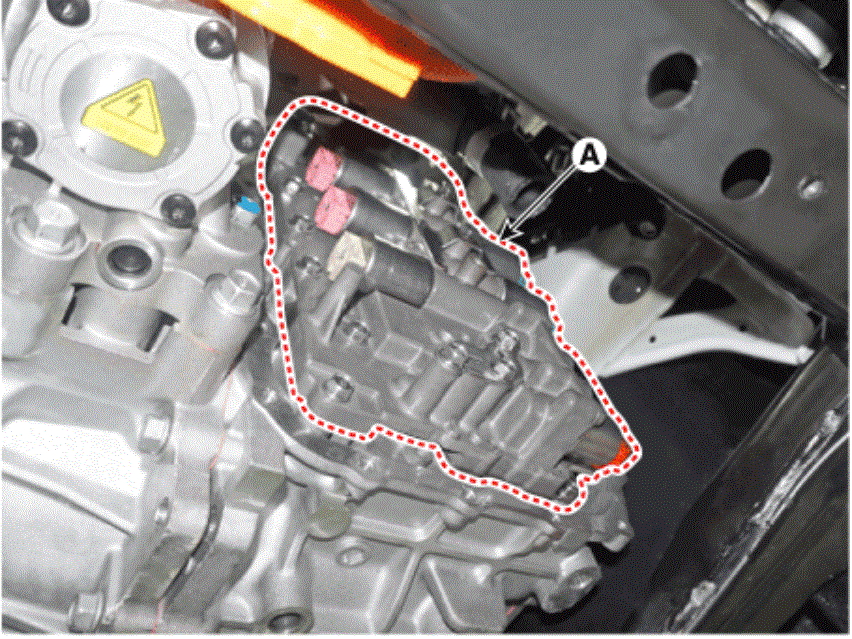

Loosen the mounting bolts and then removing the valve body assembly (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

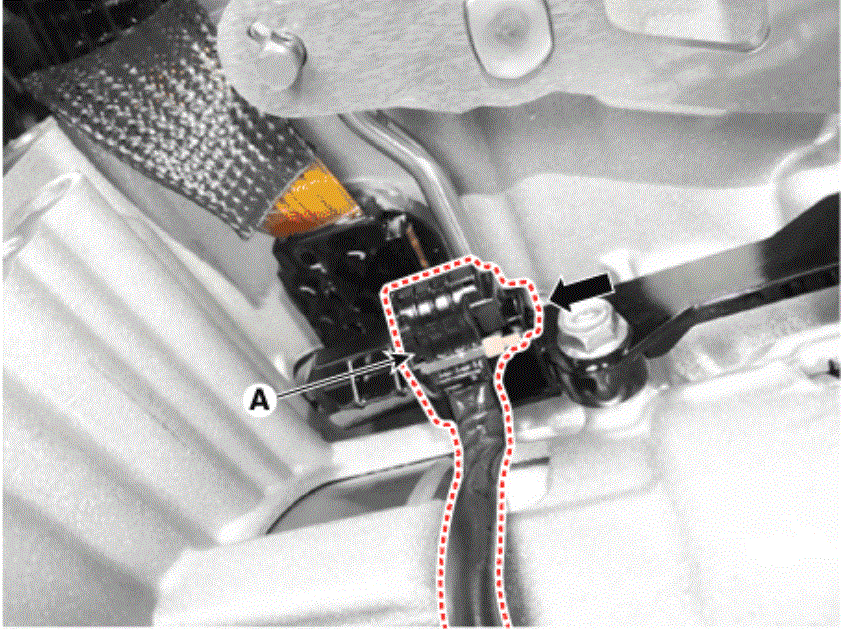

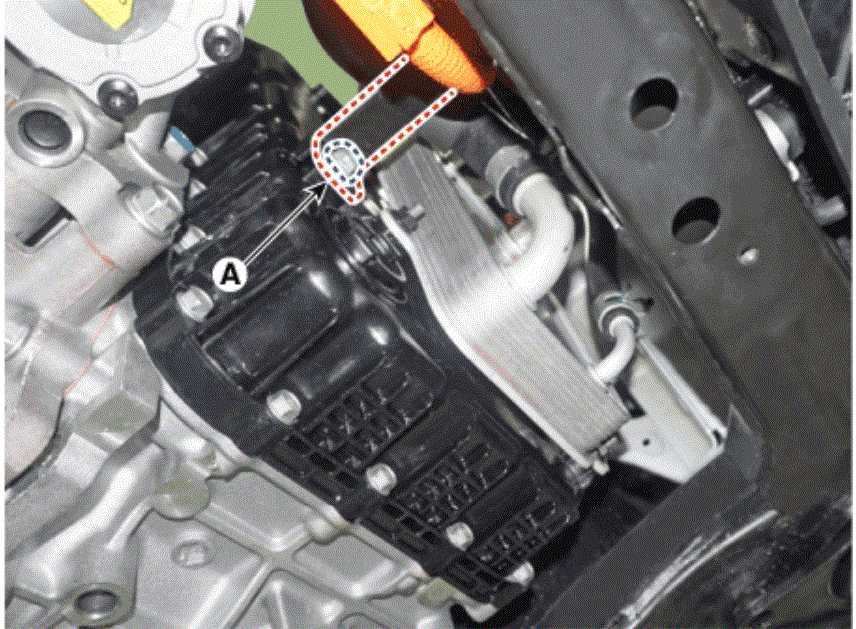

Disconnect the connector (A) from the solenoid valve connector module.

Courtesy of HYUNDAI MOTOR AMERICA

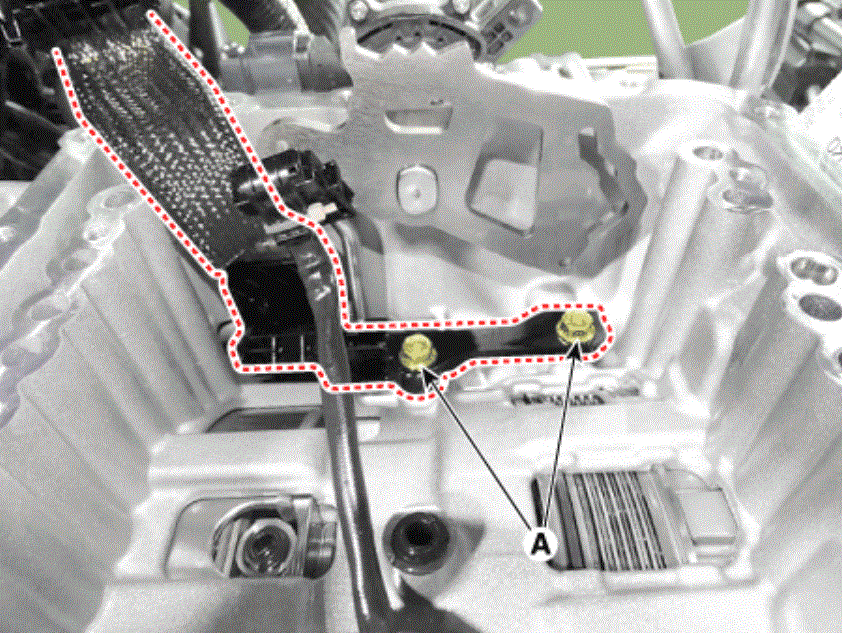

Loosen the solenoid valve connector module mounting bolts (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the solenoid valve connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

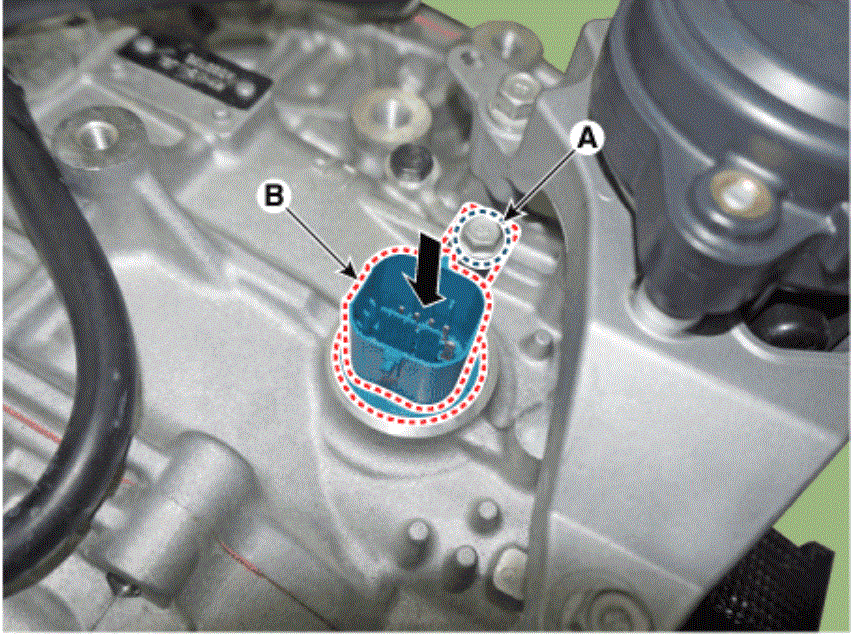

Loosen the bolt and then removing the solenoid valve connector fixing clip (A).
Put down the solenoid valve connector and then separate the solenoid valve connector (B) from the transaxle.

Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:

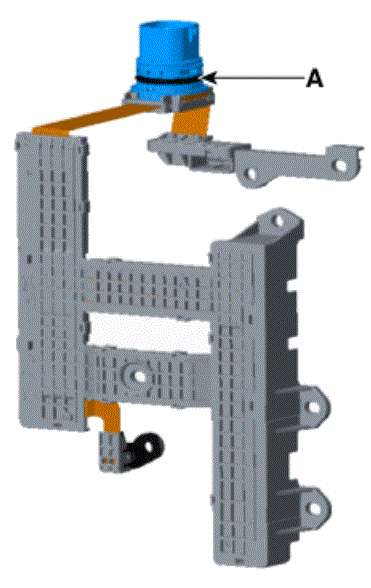

- Replace the O-Ring (A) before reinstalling solenoid valve connector.
Courtesy of HYUNDAI MOTOR AMERICA
