Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.

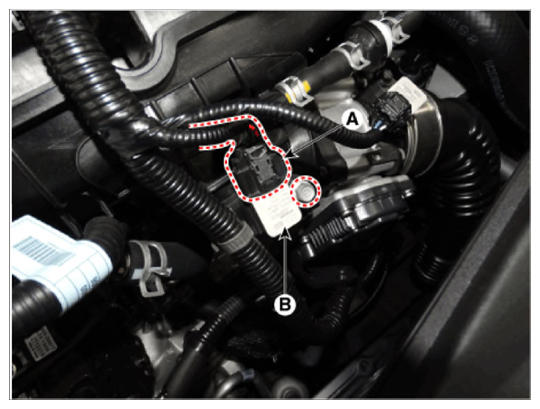

  2. Disconnect the boost pressure sensor (BPS) connector (A).
  3. Remove the sensor (B) after loosening the mounting bolt.
G14625690Courtesy of HYUNDAI MOTOR AMERICA
