Fuel Tank Pressure Sensor (FTPS): Specifications: Specification

Pressure [kpa (kgf/cm2 , psi)] Output Voltage (V)
-6.67 (-0.07, -0.97) 0.5
0 2.5
6.67 (0.07, 0.97) 4.5

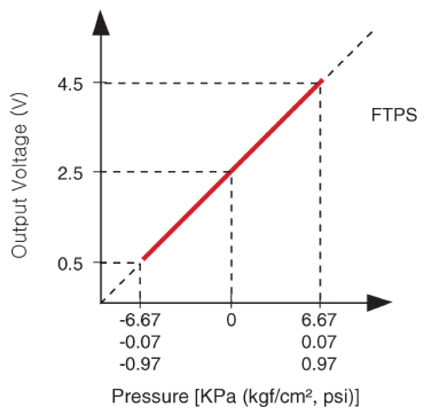

G14625736Courtesy of HYUNDAI MOTOR AMERICA
