Description And Operation: Operation

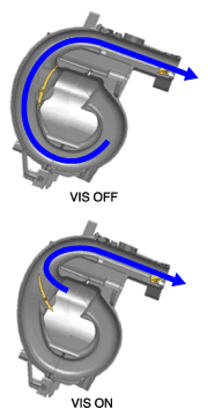

Engine Condition	VIS valve	Operation
Medium speed	OFF	Increasing engine performance in low engine speed by reducing intake interference among cylinders
Low/High speed	ON	Minimizing intake resistance by shortening intake manifold length and increasing area of air entrance

Courtesy of HYUNDAI MOTOR AMERICA
