Repair Procedures: Replacement
- Open the cover and loosen the front seat mounting bolts.

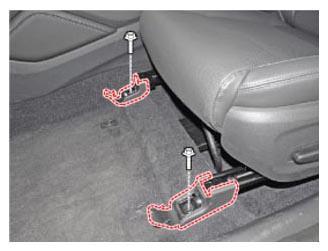

[Front]
Tightening torque:
34.2 - 53.9 N.m (3.5 - 5.5 kgf.m, 25.3 - 39.8 lb-ft)

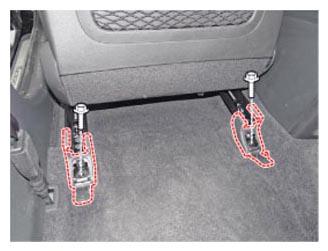

[Rear]
Tightening torque:
34.2 - 53.9 N.m (3.5 - 5.5 kgf.m, 25.3 - 39.8 lb-ft)

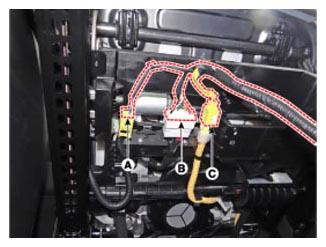

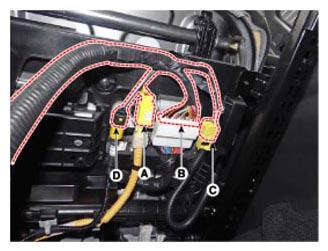

- Disconnect the airbag connector (A), seat warmer & power seat switch connector (B), front seat belt buckle connector (C), seat belt reminder connector (D).
[Driver's]
[Passenger's]
- Install in the reverse order of removal.
Information
The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
* How to detach the anchor seat belt

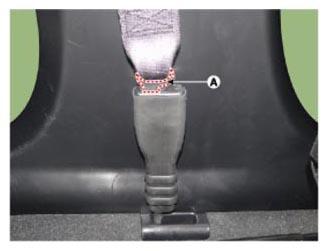

- When replacing anchor pretensioner, make sure to use the assigned tools to remove the anchor safety belt connector (A).
Tools to be used
Tool A: hex wrench screwdriver or drill with diameter of 3 mm and length of 56 mm or more.
Tool B: screwdriver or drill with diameter of 3 mm.

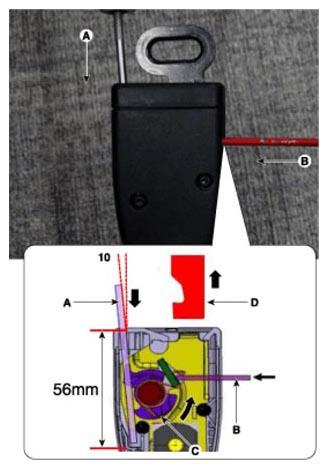

- Insert the tool (A) vertically into the hole (F). Then, tilt it over 10° as shown in the figures below.NOTE:
- When tilted 10°, tool (A) pushes and rotates the internal part (C).

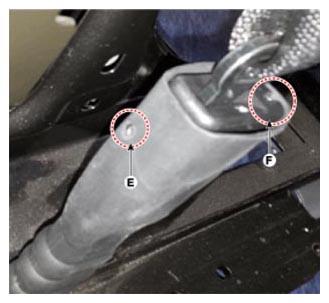

- Insert and push the tool (B) vertically into the hole (E). Then, anchor safety belt connector (D) will be disconnected.
