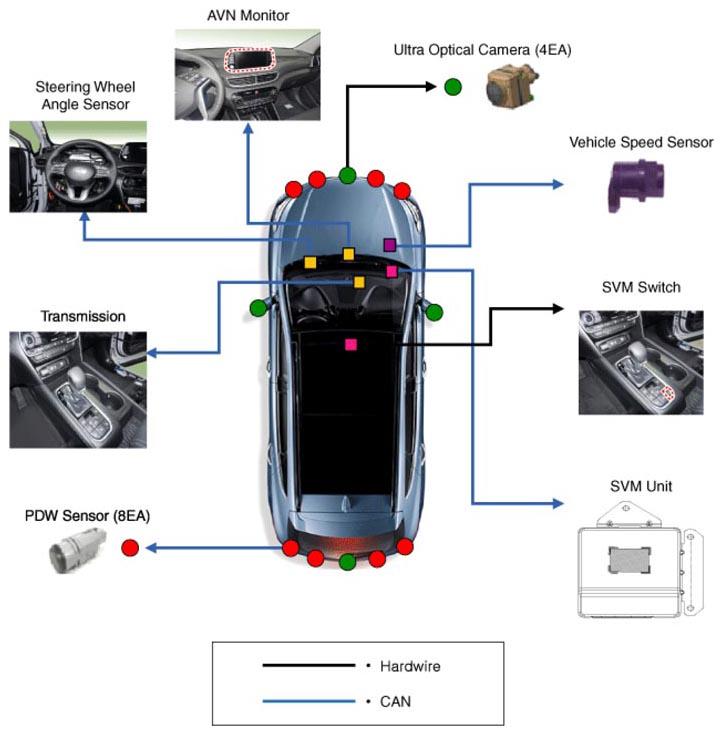

Components And Components Location: Components: Notes

Courtesy of HYUNDAI MOTOR AMERICA

Information

1. SVM unit basically use C-CAN signal only to communicate about the vehicle's condition.
   • Steering wheel angle sensor: C-CAN
   • Vehicle speed sensor: C-CAN
2. Other unit's B-CAN, P-CAN, MM-CAN signal is changed to C-CAN signal and sent to SVM unit by CGW (Central Gate Way).
   • AVN monitor: MM-CAN
   • Transmission: P-CAN (TCM unit)
   • SPAS sensor: C-CAN (SVM unit)
   • PAS sensor: B-CAN (BCM)
