GDS data analysis

  1. Connect GDS and select "DTC Analysis" mode
  2. Warm up the engine.
  3. Monitor the parameters related to DTC on the "Current Data" menu of the GDS as below.

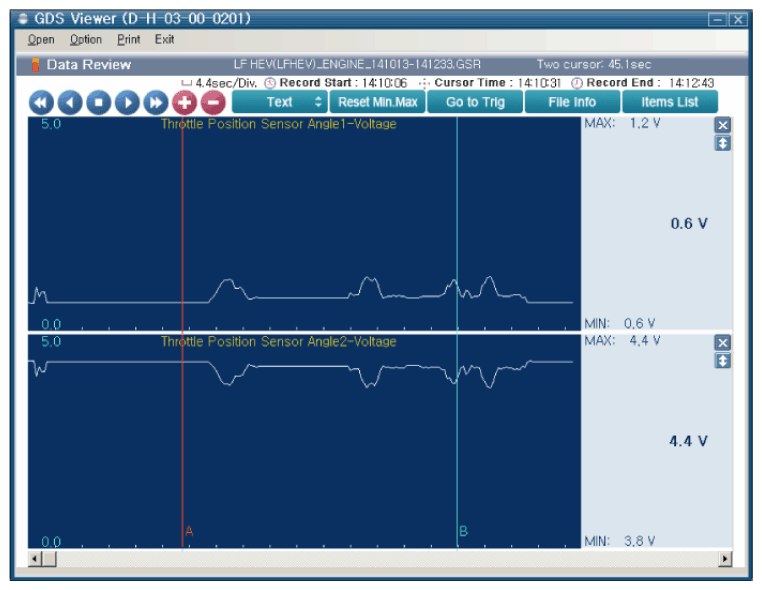

    G13030830Courtesy of HYUNDAI MOTOR AMERICA

    TPS 1 - During Idling: Approx. 0.6V, During Acceleration: Approx. 4.5V

    TPS 2 - During Idling: Approx. 4.5V, During Acceleration: Approx. 1.6V

  4. Is parameter displayed within specifications?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO

    • Go to next step.
