Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad under cover.

    (Refer to Body - "CRASH PAD UNDER COVER ")

  3. Disconnect the body control module connectors (A).
    G13030223Courtesy of HYUNDAI MOTOR AMERICA

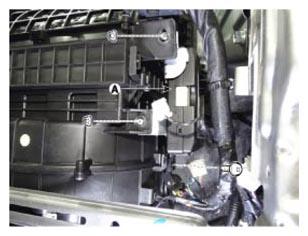

  4. Remove the body control module (A) after loosening the mounting nuts and screw.
    G13030224Courtesy of HYUNDAI MOTOR AMERICA
