Repair Procedures: Replacement

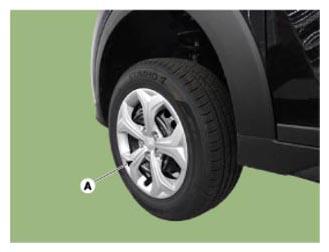

Remove the front wheel and tire (A) from front hub.
Tightening Torque:

88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Be careful not to damage to the hub bolts when removing the front wheel and tire (A).

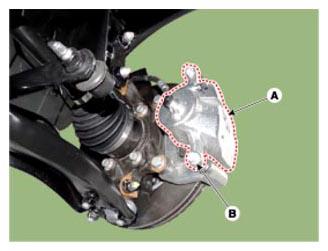

Loosen the guide rod bolt (B) and then pivot the caliper body (A) up out of the way.
Tightening Torque:

21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

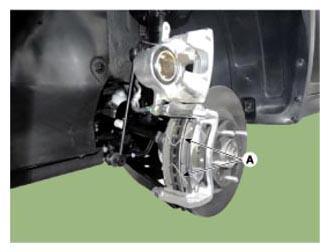

Remove the pad return spring (A) and then separate the brake pad.
Tightening Torque:

274.6 ~ 294.2 N.m (28.0 ~ 30.0 kgf.m, 202.5 ~ 217.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

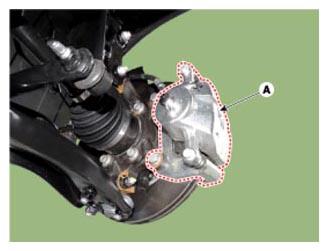

Remove the brake caliper mounting bolts, and then place the brake caliper assembly (A) with wire.
Tightening Torque:

78.5 ~ 98.1 N.m (8.0 ~ 10.0 kgf.m, 57.9 ~ 72.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

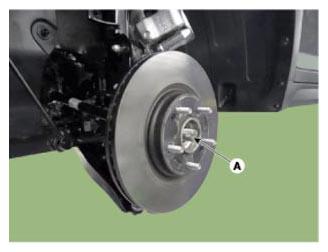

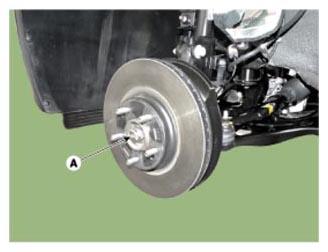

Loosen the caulking nut (A).
Tightening Torque:

294.2 ~ 313.8 N.m (30.0 ~ 32.0 kgf.m, 217.0 ~ 231.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: The front hub caulking nut should be replaced with new ones.
After installation caulking nut (A), must be caulked certainly using a chisel and hammer.

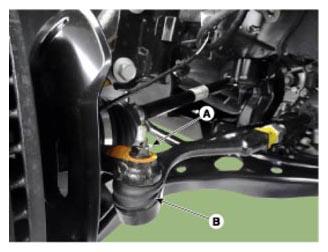

Remove the tie rod end ball joint from the knuckle.
1. Remove the split pin (A).
2. Loosen the nut and then remove the ball joint (B).
Tightening Torque:

34.3 ~ 44.1 N.m (3.5 ~ 4.5 kgf.m, 25.3 ~ 32.5 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

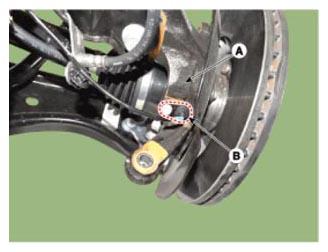

Remove the wheel speed sensor (B) from the front axle assembly (A).
Tightening Torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

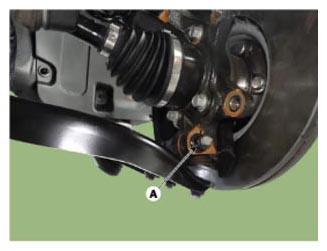

Loosen the bolt & nut after removing the pin (A).
Tightening Torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Do not use a bar to release the lower arm from the knuckle.

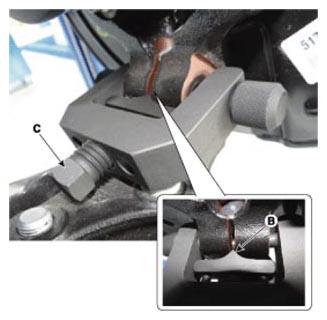

Remove the lower arm from the knuckle by using the SST (09568-4R100).

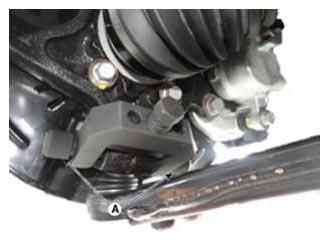

1. Install the support bolt (A) from bolt hole.
2. Install the support body (B) from front axle.
3. Tighten the bolt (C).
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the driveshaft (A) from the front hub assembly.

Courtesy of HYUNDAI MOTOR AMERICA

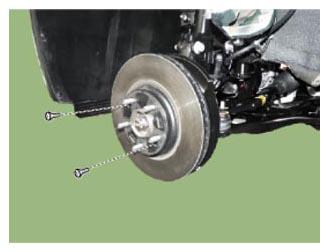

Loosen the front brake disc mount screw and then remove the front brake disc.
Tightening Torque:

4.9 ~ 5.8 N.m (0.5 ~ 0.6 kgf.m, 3.6 ~ 4.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

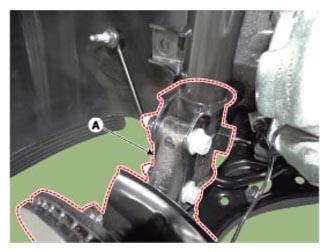

Loosen the strut mount bolts and then remove the knuckle assembly (A).
Tightening Torque:

196.1 ~ 215.7 N.m (20.0 ~ 22.0 kgf.m, 144.7 ~ 159.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- Use a SST (09581-2T100) when installing the Brake Caliper Assembly.
(Refer to Brake System - "FRONT DISC BRAKE ")
Check the Front Alignment.
(Refer to Suspension System - "ALIGNMENT ")
