Repair Procedures: Installation
CAUTION:

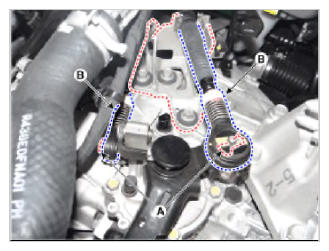

- Place the shift lever and transaxle side lever in 4th shift position and insert the lever fixing pin (A).

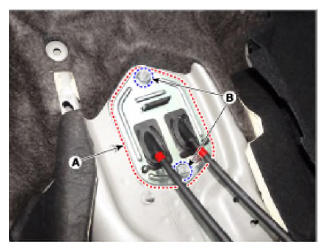

- Install the retainer (A) and then tighten the nuts (B-2ea).
Tightening torque:
11.8 - 14.7 N.m (1.2 - 1.5 kgf.m, 8.7 - 10.8 lb-ft)

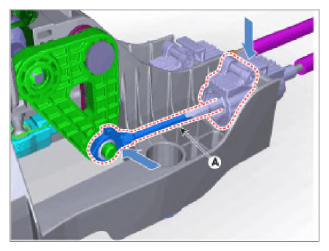

- Install the select cable (A).

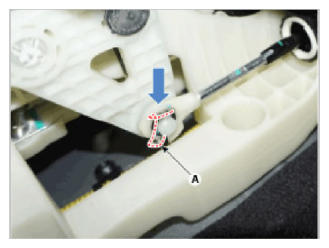

- Install the snap pin (A).

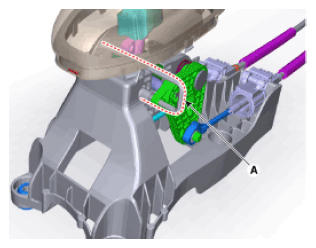

- Install the shift cable.

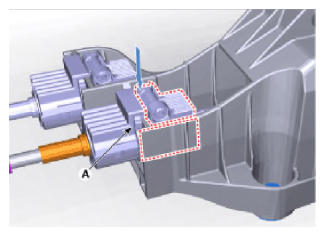

- Install the cable socket (A) after release the lock.

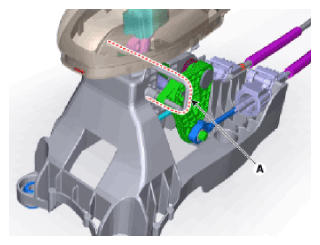

- Install the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.
- Install the cable socket (A) after release the lock.

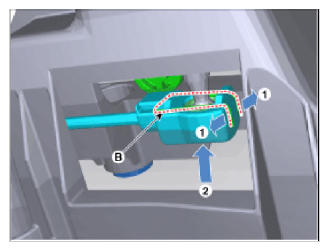

- Move the locker (B) in the direction of "F" with pulling the holder (A) in the direction of "P".
- Install the snap pin (A-2ea) and then separate the shift & select cable (A) from the control bracket.
- Tighten the holder (A) to the "P" directions after fixing the rockers (B) in the "F" direction.
- Remove the shift lever 4th fixed pin (A).
- Install the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")
- Install the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Install the engine control module (ECM).
(Refer to Engine Control System - "ECM ")
- Install the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
CAUTION:
- Check operating of lever of transaxle side when operating shift lever after assembly. (1-6, R)
- If there is sticky feel, adjust the control cable length again.
(Refer to Manual Transaxle Control System - "CONTROL CABLE ")
