Repair Procedures: Removal

Move the shift lever to 4th gear.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the engine control module (ECM).
(Refer to Engine Control System - "ECM ")

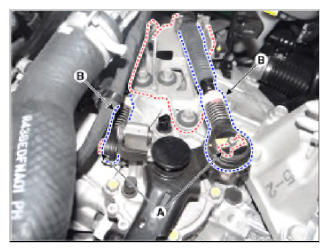

Remove the snap pin (A-2ea) and then separate the shift & select cable (B) from the control bracket.

Courtesy of HYUNDAI MOTOR AMERICA

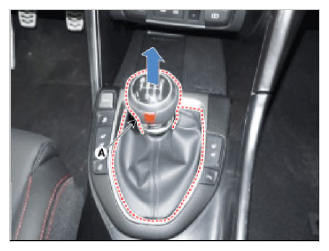

Remove the shift lever knob & boots (A) pull both of it up.

Courtesy of HYUNDAI MOTOR AMERICA
Remove the floor console assembly.
(Refer to Body - "FLOOR CONSOLE ")

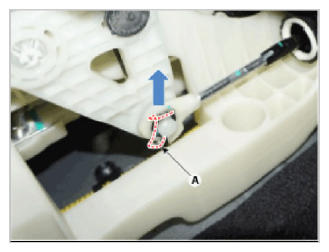

Remove the snap pin (A).

Courtesy of HYUNDAI MOTOR AMERICA

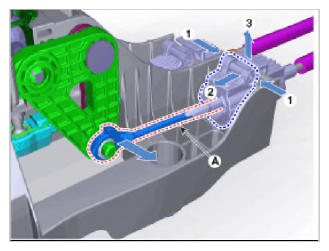

Remove the select cable (A).

Courtesy of HYUNDAI MOTOR AMERICA

Remove the shift cable.

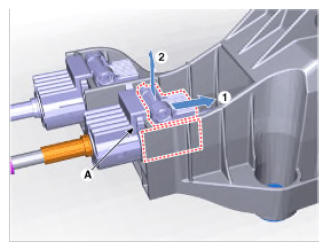

Remove the cable socket (A) after release the lock.

Courtesy of HYUNDAI MOTOR AMERICA

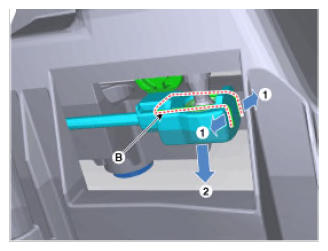

Remove the clip, in the shape of a "U" (B), from the cable end by spreading it towards both sides.

Courtesy of HYUNDAI MOTOR AMERICA

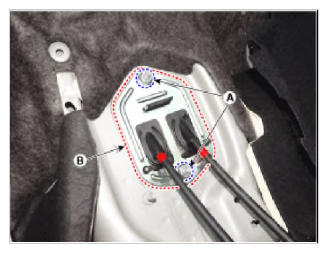

Loosen the nuts (A-2ea) and then removing the cable retainer (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable assembly from the vehicle.
