Repair Procedures: Installation
- To install, reverse replacement procedures.
CAUTION:
- New shift lever assembly is mounted in the 4th fixing pin.
After installation, remove the 4th fixed pin.

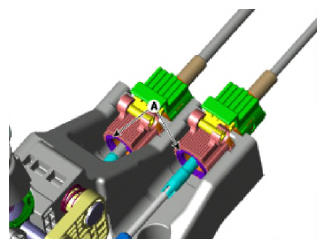

- After installing the select cable and shift cable socket, check portion (A) to see if it projects outwards from the cap.
- Check operating of lever of transaxle side when operating shift lever after assembly. (1-6, R)
- If there is sticky feel, adjust the control cable length again.
(Refer to Manual Transaxle Control System - "CONTROL CABLE ")
