Repair Procedures: Installation
- To install, reverse the removal procedures.NOTE:

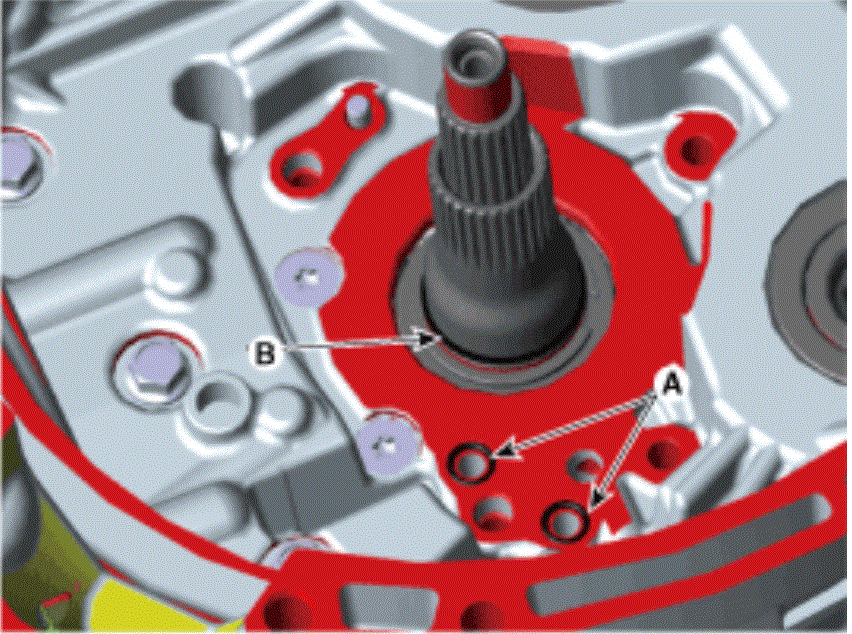

- Before installing, check the state of the O-ring (A) and the sealing (B), then replace them if necessary. (The sealing (B) is an easily deformable material. So, do not reuse the sealing (B) once it is removed from the shaft).

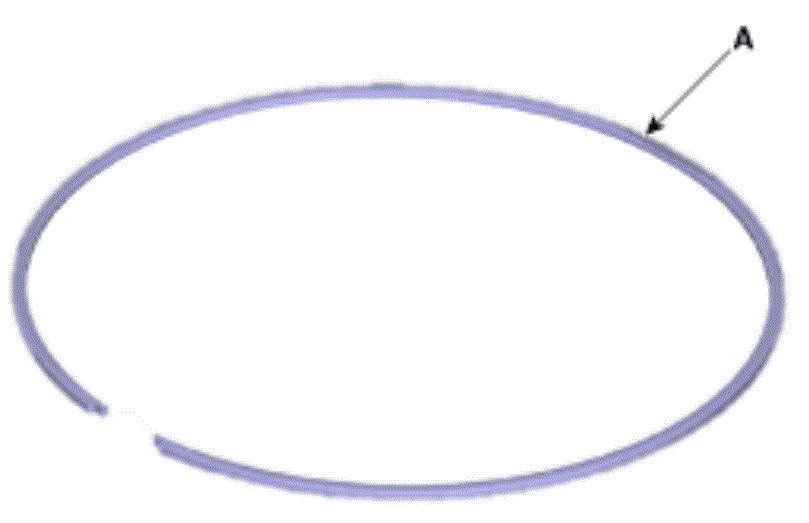

- Replace the snap ring (A) with new one.
- Replace the sealing cover (A) with new one.

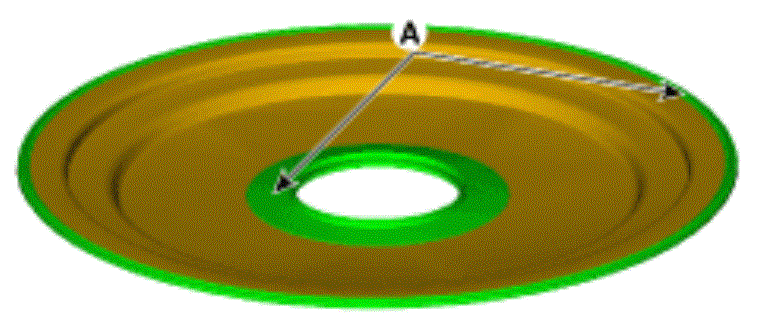

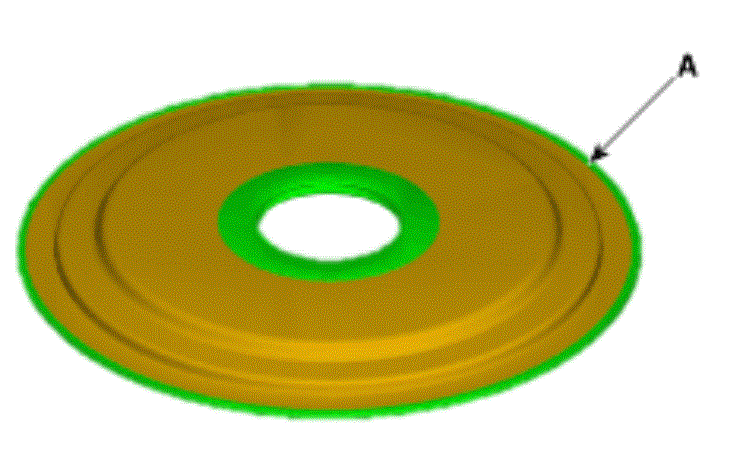

- Before installing the sealing cover, apply oil for lubrication/cooling to the inner/outer sealing face (A).
- The dual clutch assembly and the dual concentric slave cylinder must be replaced as a set. (Make sure to check their serial numbers are matched with each other)
- The part numbers of the dual clutch are different depending on the vehicle model. Therefore, when replacing the dual clutch, make sure to check whether the part number is matched with the vehicle specification.

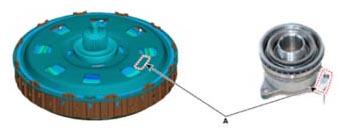

- Barcode location (A)
- The part numbers of the dual clutch are different depending on the vehicle model. Therefore, when replacing the dual clutch, make sure to check whether the part number is matched with the vehicle specification.
- Before installing, check the state of the O-ring (A) and the sealing (B), then replace them if necessary. (The sealing (B) is an easily deformable material. So, do not reuse the sealing (B) once it is removed from the shaft).

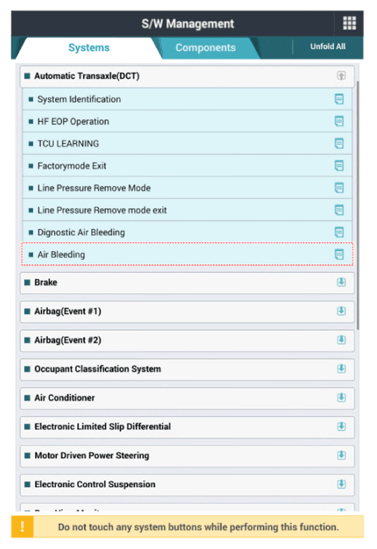

- Perform the air bleeding procedure using the diagnostic tool.

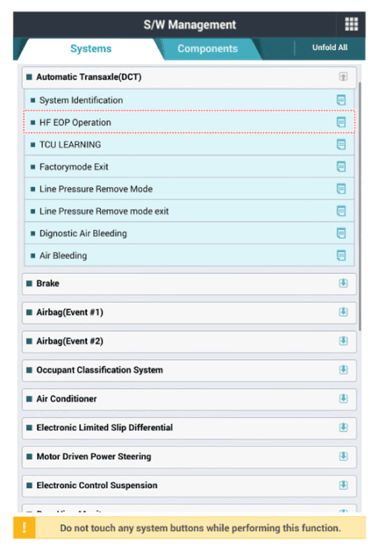

- Perform the HF EOP operation procedure using the diagnostic tool.
