Repair Procedures: Removal
- Make sure vehicle does not roll before setting shift lever to "N" position.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")

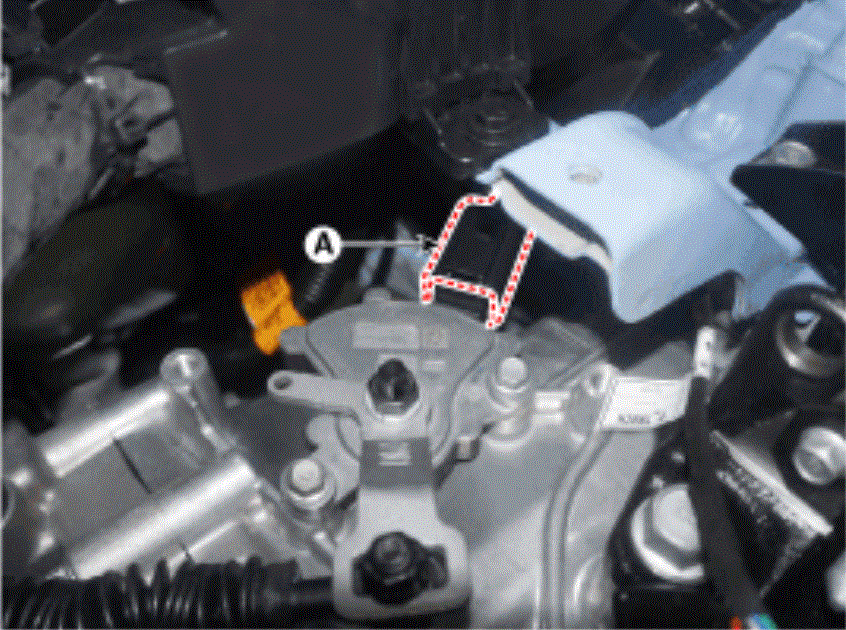

- Disconnect the position switch connector (A).

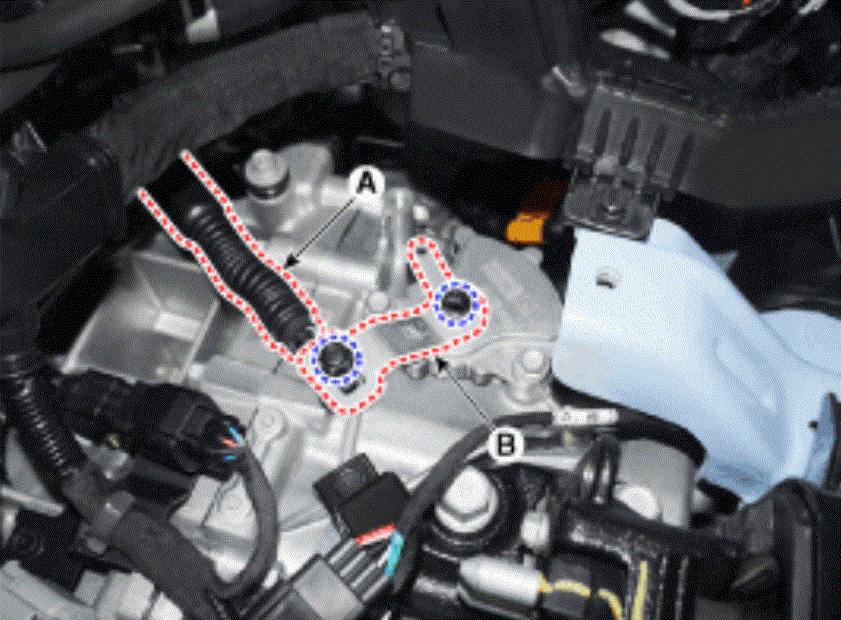

- Loosen the nut and then removing the shift cable (A) and the manual lever (B).

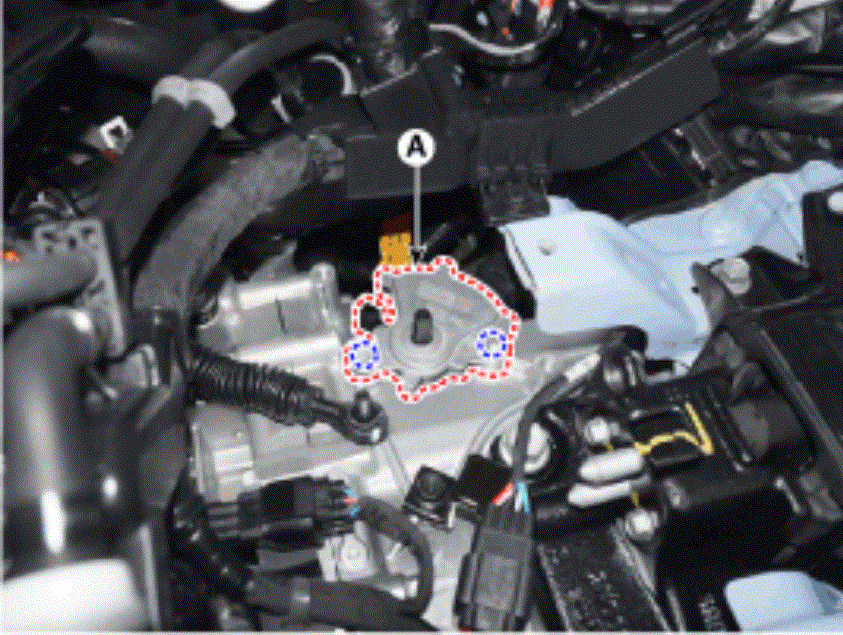

- Loosen the bolts and then removing the position switch (A).
