Repair Procedures: Installation

  1. To install, reverse the removal procedures.
    NOTE:
    • Install the cable after placing the shift lever and the manual control lever in the N position.
    CAUTION:

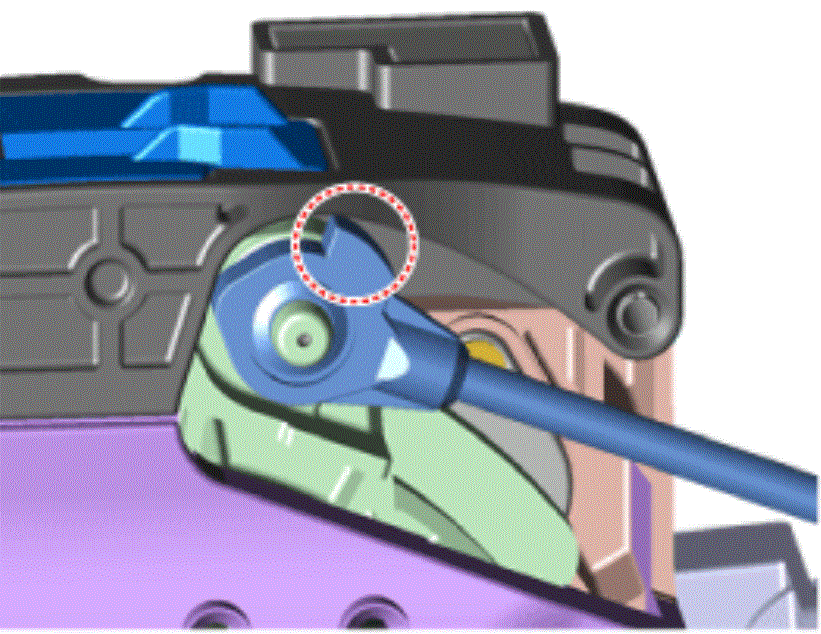

    • Lug must assemble upward.
    • Install the snap pin after placing the shift lever in the N position.
      G15474924Courtesy of HYUNDAI MOTOR AMERICA

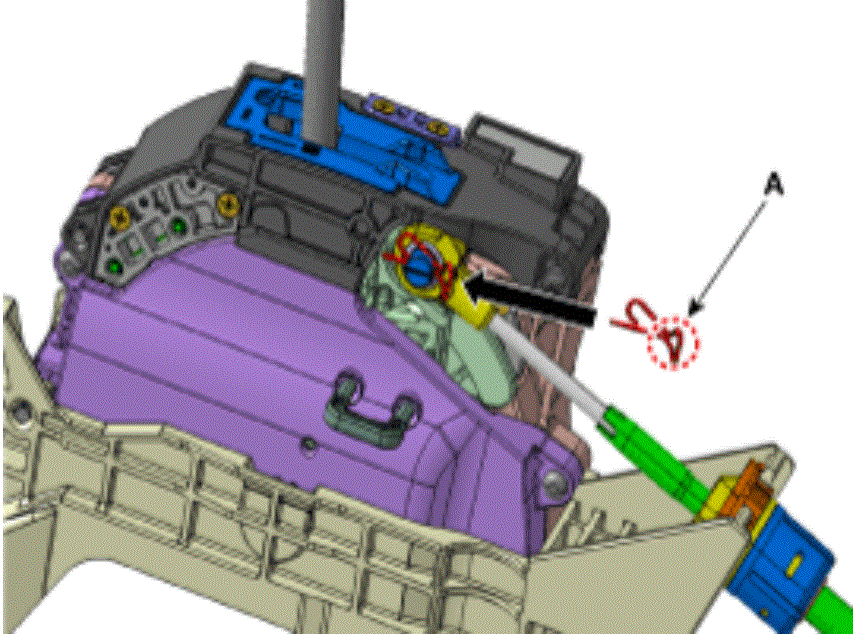

    • When assembling the snap pin, be careful about the correct direction.
    • The band portion (A) must point to the front of the vehicle.
    • The band portion (A) must point outwards.
    G15474925Courtesy of HYUNDAI MOTOR AMERICA
