Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat assembly (Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
  2. Carefully remove the rear door body side weatherstrip.
  3. Carefully remove the tail gate weatherstrip.
  4. Remove the rear door scuff trim. (Refer to Interior Trim - "DOOR SCUFF TRIM ")
  5. Remove the rear transverse trim. (Refer to Interior Trim - "REAR TRANSVERSE TRIM ")
  6. After loosening the mounting bolts and clip, remove the luggage side trim (A).

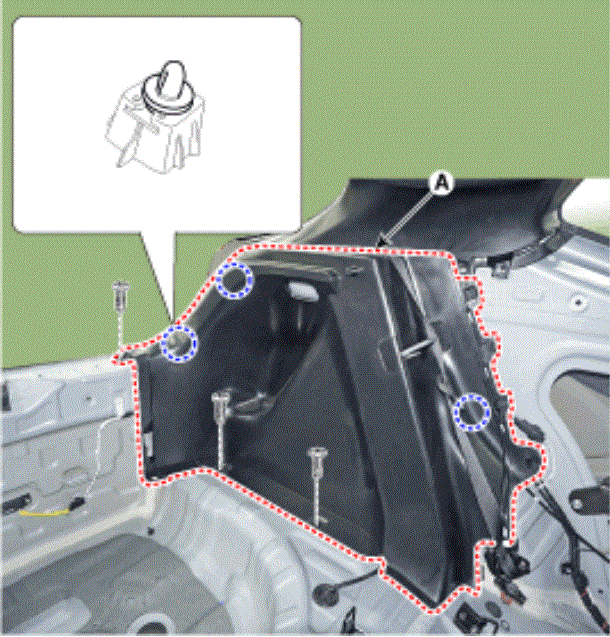

    [LH]

    G15494669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

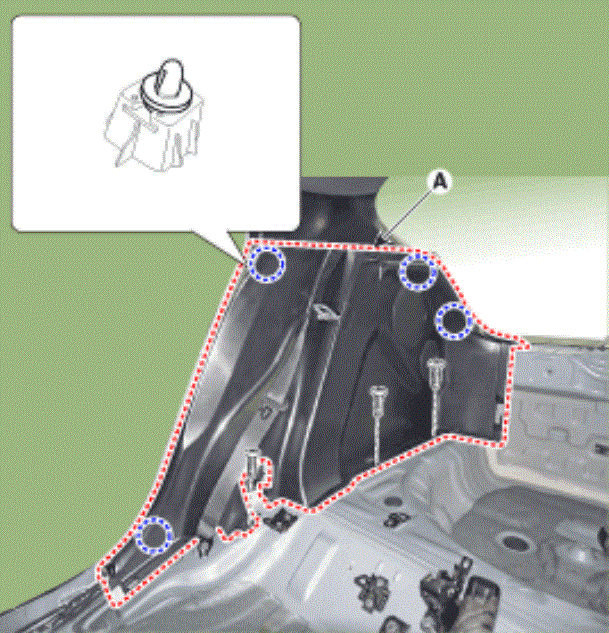

    [RH]

    G15494670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
