Repair Procedures: Installation

  1. Install the water pump belt.
    1. Insert the SST (09252 - C1000) between the water pump pulley and the water pump belt.
    2. Install the water pump belt (A) by turning the crankshaft damper pulley clockwise.

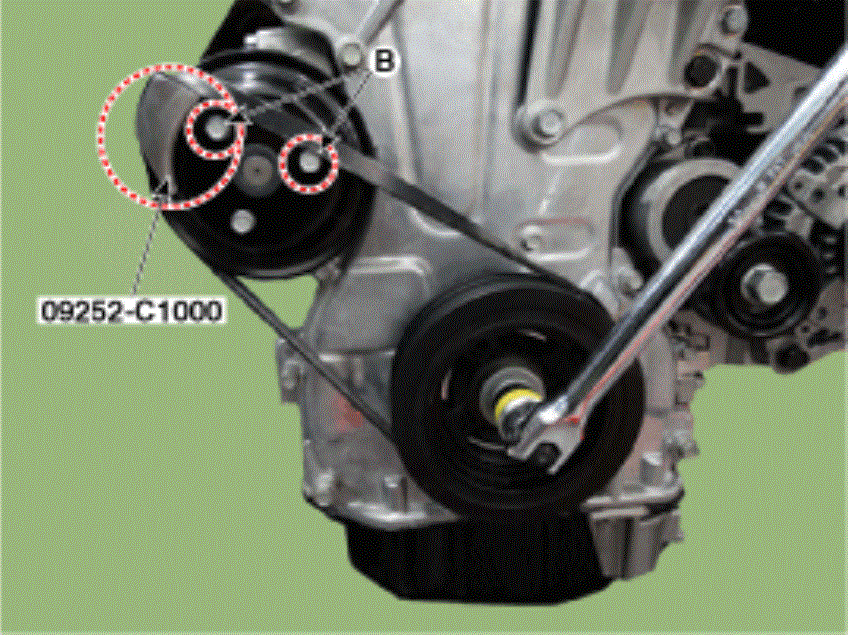

    G15471469Courtesy of HYUNDAI MOTOR AMERICA

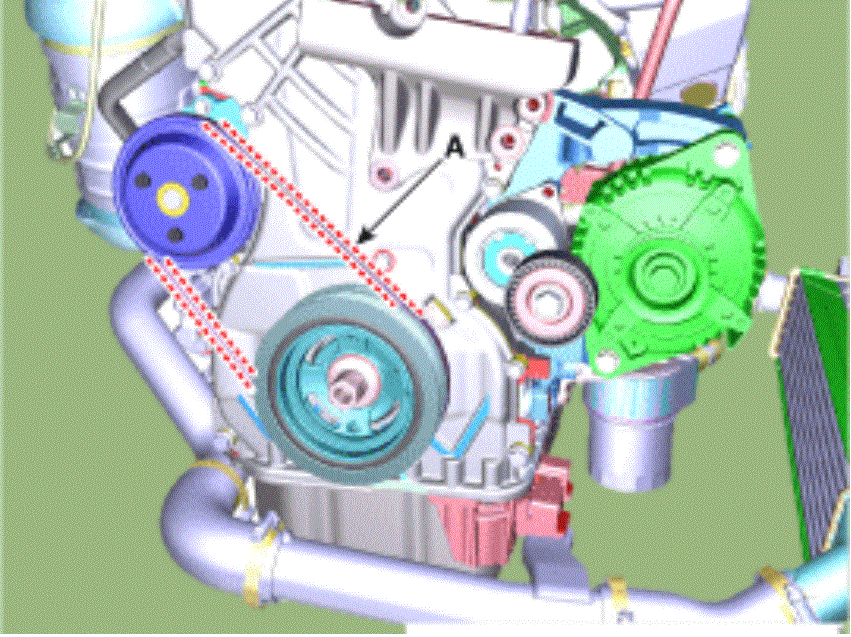

    G15471470Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Install the water pump belt while being careful not to damage the water pump belt caused by water pump pulley mounting bolts (B).
  2. For release the tension, turn the drive belt tensioner counterclockwise then install the drive belt (A).

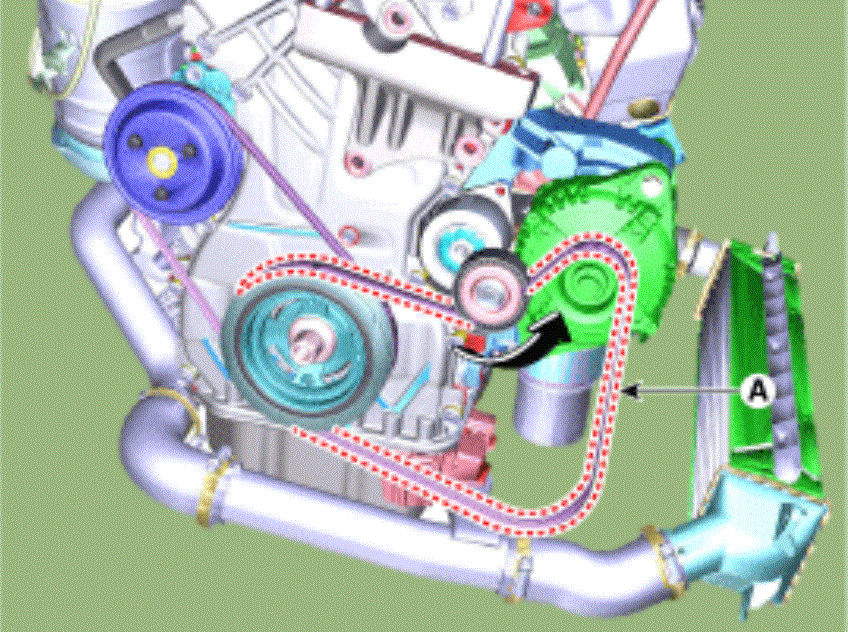

    G15471471Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the other parts in the reverse order of removal.
