Repair Procedures: Installation
CAUTION:
- When you need calibration
- Replace Front View Camera with a new one
- Front View Camera is removed and mounted
- Windshield glass changed
- Front View Camera coupler of the windshield glass is deformed

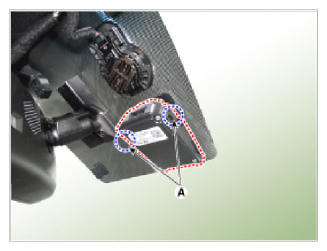

- Align the reference point at alignment point (A) and align front view camera.
- Apply force to lock position (A) to complete mounting.NOTE:
- Fully assembly so that you can hear a 'clicking' sound when assembling.
- Connect the front view camera connector.
- Install the front view camera cover.
- Connect the negative (-) battery terminal.
- Perform the "VARIANT CODING " with GDS.
- Perform the "SERVICE POINT TARGET AUTO CALIBRATION (SPTAC) " with GDS.
