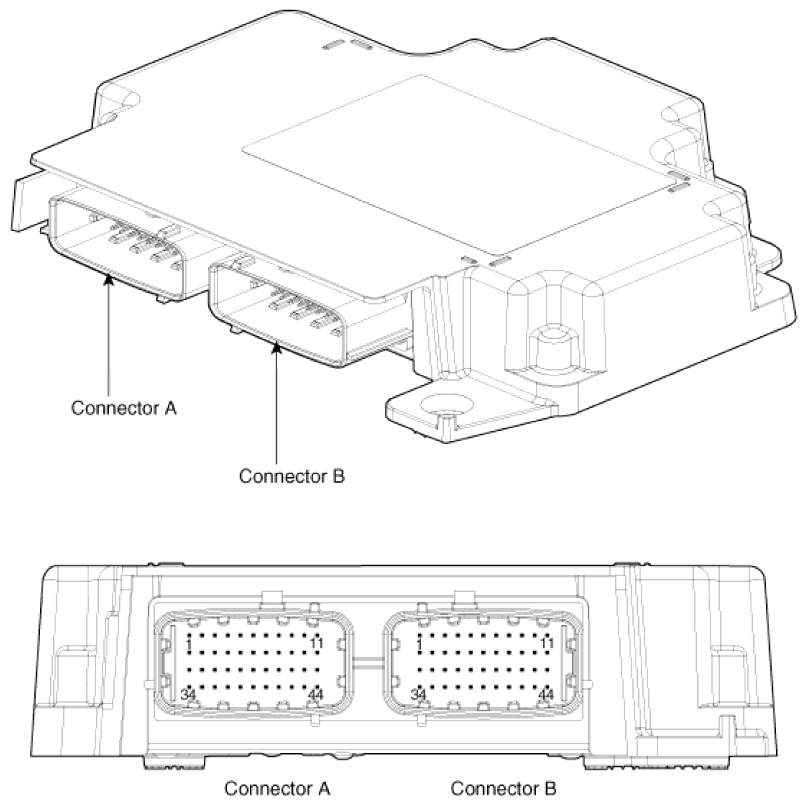

Supplemental Restraint System Control Module (SRSCM)

Courtesy of HYUNDAI MOTOR AMERICA

No	Connector A	Connector B
1	IGN 1	Passenger side impact sensor - High (+)
2	Driver front impact sensor - High (+)	Passenger side impact sensor - Low (-)
3	Driver front impact sensor - Low (-)	Driver side impact sensor - High (+)
4	Passenger front impact sensor - High (+)	Driver side impact sensor - Low (-)
5	Passenger front impact sensor - Low (-)	Passenger pressure side impact sensor - High (+)
6	C-CAN (Low)	Passenger pressure side impact sensor - Low (-)
7	C-CAN (High)	Driver Passenger side impact sensor - High (+)
8	L-CAN (Low)	Driver pressure side impact sensor - Low (-)
9	L-CAN (High)	-
10	-	-
11	-	Ground
12	Driver airbag 1st stage - High (+)	Driver seat belt pretensioner - Low (-)
13	Driver airbag 1st stage - Low (-)	Driver seat belt pretensioner - High (+)
14	Passenger airbag 1st stage - Low (-)	Passenger seat belt pretensioner - High (+)
15	Passenger airbag 1st stage - High (+))	Passenger seat belt pretensioner - Low (-)
16	-	Driver curtain airbag - Low (-)
17	-	Driver curtain airbag - High (+)
18	-	Driver side airbag - High (+)
19	-	Driver side airbag - Low (-)
20	-	Passenger side airbag - Low (-)
21	-	Passenger side airbag - High (+)
22	Crash output	-
23	Driver airbag 2st stage - High (+)	-
24	Driver airbag 2st stage - Low (-)	-
25	Passenger airbag 2st stage - Low (-)	-
26	Passenger airbag 2st stage - High (+))	-
27	Telltale lamp	-
28	-	-
29	-	-
30	-	-
31	-	-
32	-	-
33	-	Passenger seat belt buckle sensor - Low (-)
34	-	Passenger curtain airbag - Low (-)
35	-	Passenger curtain airbag - High (+)
36	-	Driver anchor pretensioner - High (+)
37	-	Driver anchor pretensioner - Low (-)
38	-	Passenger anchor pretensioner - Low (-)
39	-	Passenger anchor pretensioner - High (+)
40	-	-
41	-	-
42	-	-
43	-	-
44	-	Passenger seat belt buckle sensor - High (+)
