Engine Monitoring Logic (Service Campaign 974) (SC974)
Publication date: 2022-05-10Reference number: SC974
Supersedes refnos: 22-01-043H, SC 974
ENGINE MONITORING LOGIC (SERVICE CAMPAIGN 974)
SERVICE CAMPAIGN BULLETIN
Reference Number(s): 22-01-043H, Date of Issue:
May 10, 2022
| HYUNDAI: | 2019-20 Elantra (AD); 2019-21 Kona (OS), Veloster (JS) |
| GROUP: | CAMPAIGN |
SERVICE INFORMATION
IMPORTANT:
*** Retail Vehicles
***
Dealer must perform this Service Campaign whenever an affected vehicle is in the shop for any maintenance or repair.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Vehicle Information Screen (VIS)" via WEBDCS to identify open service campaigns.
Dealer must perform this Service Campaign whenever an affected vehicle is in the shop for any maintenance or repair.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Vehicle Information Screen (VIS)" via WEBDCS to identify open service campaigns.
DESCRIPTION
Hyundai is conducting a service campaign to enhance the knock sensor logic with the Cylinder Noise Diagnostic System (CNDS) software update. CNDS is to detect abnormal cylinder wall scuffing or noise of the engine block before potentially severe engine damage occurs. If abnormal noise is detected, the Malfunction Indicator Lamp (MIL) will blink continuously. In addition, DTC P1327 will be recorded in the ECM.
APPLICABLE VEHICLES
- Certain 2019-20MY Elantra (AD*) vehicles with 2.0L Nu engines produced through 7/6/2020
- Certain 2019-21MY Kona (OS) vehicles with 2.0L Nu engines produced through 9/1/2020
- Certain 2019-21MY Veloster (JS) vehicles with 2.0L Nu engines produced through 5/27/2020
NOTE:
*Elantra (AD) vehicles have VINs starting with "KMH".
GDS INFORMATION
GDS INFORMATION
| Event # | Description |
|---|---|
| 801 | (19MY) OS NU 2.0 ATK ENGINE (CNDS LOGIC APPLICATION) |
| 802 | (19-20MY) JS NU 2.0 ATK ENGINE (CNDS LOGIC APPLICATION) |
| 803 | (19MY) AD PE NU 2.0 ATK ENGINE (CNDS LOGIC APPLICATION) |
| 808 | (21MY) JS NU 2.0 ATK ENGINE (CNDS LOGIC APPLICATION) |
| 809 | (20MY) AD PE NU 2.0 ATK ENGINE (CNDS LOGIC APPLICATION) |
| 752 | (20-21MY) OS NU 2.0 ATK ENGINE (CNDS LOGIC APPLICATION) |
NOTE:
- Refer to TSB 15-GI-001 for additional tablet-based Mobile GDS ECU update information.
- After the ECU Upgrade process shows 100% complete, cycle the ignition key to OFF for at least 30 seconds to reset the control unit . This step is important for establishing normal powertrain communication and to prevent system errors.
- Clear DTC(s) present after the ECU update.
- Start engine to confirm proper operation of the vehicle.
NOTE:
You must initially perform all GDS ECU Updates in Auto Mode.
If the ECU Update starts but then fails in Auto Mode, perform the update in Manual Mode to recover.
If the ECU Update starts but then fails in Auto Mode, perform the update in Manual Mode to recover.
GDS Vehicle Battery Voltage Warning:
If voltage is below 12 volts as per the GDS warning, then select Back and run the engine at least 15 minutes to reach an adequate battery state of charge to prevent ECU Update failure. Cycle the ignition OFF/ON before retrying ECU update again.
WARRANTY INFORMATION
WARRANTY INFORMATION
| Model | Op Code | Operation | Op Time | Causal P/N | Nature | Cause |
|---|---|---|---|---|---|---|
| Elantra (AD) | 20D016R0 | ECM UPGRADE | 0.3 M/H | 1D691-2EU00 | I3T | ZZ3 |
| Kona (OS) | 20D016R1 | |||||
| Veloster (JS) | 20D016R2 |
NOTE:
1:
Submit claim on Campaign Claim Entry Screen
NOTE:
2:
If a part that is not covered by this campaign is found in need of replacement while performing this campaign and the affected part is still under warranty, submit a separate claim using the same repair order. If the affected part is out of warranty, submit a Prior Approval request for goodwill consideration prior to performing the work.

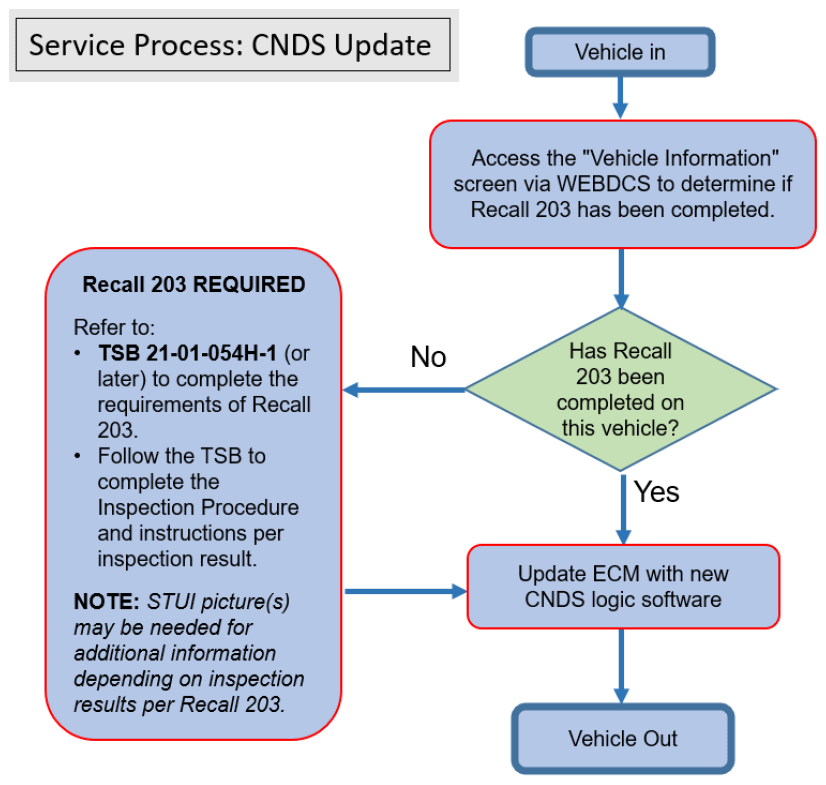

SERVICE PROCEDURE FLOWCHART
ROM ID INFORMATION TABLE
- Perform the ECM Update.
- Verify the ECM ROM ID before updating the software. Refer to the table below.
- IMMO (+) = Start Stop Button
- NON IMMO (-) = Key Start
ROM ID INFORMATION
| MODEL | TM | IMMO | ECU P/N | ROM ID | |
|---|---|---|---|---|---|
| OLD | ROM ID | ||||
| 19MY Elantra (AD) | 6AT2 | +IMMO | 39171-2EFB5 | AD9SP2AS694A AD9SP2AS695A AD9SP2AS697A |
AD9SP2AF699A |
| 6AT2 | -IMMO | 39173-2EFB5 | AD9SP2US694A AD9SP2US695A |
AD9SP2UF699A | |
| 6AT2 | +IMMO | 39171-2EFC5 | AD9UP2AS694A AD9UP2AS695A AD9UP2AS697A |
AD9UP2AF699A | |
| 6AT2 | -IMMO | 39173-2EFC5 | AD9UP2US694A AD9UP2US695A |
AD9UP2UF699A | |
| 6MT2 | -IMMO | 39177-2EFA5 | AD9UP2VS694A AD9UP2VS695A |
AD9UP2VF699A | |
| 20MY Elantra (AD) | CVT | +IMMO | 39170-2EFG5 | ADASP2AS6B1A ADASP2AS6B1B ADASP2AS6B5A ADASP2AS6B5B |
ADASP2AF6B9A |
| CVT | -IMMO | 39172-2EFG5 | ADASP2US6B1A ADASP2US6B1B ADASP2US6B5A ADASP2US6B5B |
ADASP2UF6B9A | |
| CVT | +IMMO | 39170-2EFH5 | ADAUP2AS6B1A ADAUP2AS6B1B ADAUP2AS6B5A ADAUP2AS6B5B |
ADAUP2AF6B9A | |
| CVT | -IMMO | 39172-2EFH5 | ADAUP2US6B1A ADAUP2US6B1B ADAUP2AS6B5A ADAUP2US6B5B |
ADAUP2UF6B9A | |
ROM ID INFORMATION
| MODLE | TM | IMMO | ECU P/N | ROM ID | |
|---|---|---|---|---|---|
| OLD | NEW | ||||
| 19MY Veloster (JS) | 6MT2 | -IMMO | 39176-2EJW0 | JS9UP2VS69CA JS9UP2VS69DA JS9UP2VS69DB |
JS9UP2VF69GA |
| 6AT2 | +IMMO | 39170-2EJW0 | JS9UP2AS69CA JS9UP2AS69DA JS9UP2AS69DB |
JS9UP2AF69GA | |
| 6AT2 | -IMMO | 39172-2EJW0 | JS9UP2US69CA JS9UP2US69DA JS9UP2US69DB |
JS9UP2UF69GA | |
| 20MY Veloster (JS) | 6AT2 | +IMMO | 39170-2EJW1 | JSAUP2AS697A JSAUP2AS698A |
JSAUP2AF699A |
| 6AT2 | -IMMO | 39172-2EJW1 | JSAUP2US697A JSAUP2US698A |
JSAUP2UF699A | |
| 6MT2 | -IMMO | 39176-2EJW1 | JSAUP2VS697A JSAUP2VS698A |
JSAUP2VF699A | |
| 21MY Veloster (JS) | 6AT2 | +IMMO | 39171-2EJW2 | JSBUP2AS698A JSBUP2AS6B2A |
JSBUP2AF6B9A |
| 6AT2 | -IMMO | 39173-2EJW2 | JSBUP2US698A JSBUP2US6B2A |
JSBUP2UF6B9A | |
| 6MT2 | -IMMO | 39177-2EJW2 | JSBUP2VS698A JSBUP2VS6B2A |
JSBUP2VF6B9A | |
ROM ID INFORMATION
| MODEL | IMMO | AXLE | ECU P/N | ROM ID | |
|---|---|---|---|---|---|
| OLD | NEW | ||||
| 19MY Kona (OS) | +IMMO | 2WD | 39171-2ESE1 | OS9UPAAS694A OS9UPAAS695A |
OS9UPAAF699A |
| +IMMO | 4WD | 39171-2ESJ1 | OS9UPBAS694A OS9UPBAS695A |
OS9UPBAF699A | |
| -IMMO | 2WD | 39171-2ESE1 | OS9UPAUS694A OS9UPAUS695A |
OS9UPAUF699A | |
| -IMMO | 4WD | 39171-2ESJ1 | OS9UPBUS694A OS9UPBUS695A |
OS9UPBUF699A | |
| +IMMO | 2WD | 39171-2ESE2 | OSAUPAAS6B1A | OSAUPAAF6B9A | |
| 20MY Kona (OS) | +IMMO | 4WD | 39171-2ESJ2 | OSAUPBAS6B1A OSAUPBAS6B1B |
OSAUPBAF6B9A |
| -IMMO | 2WD | 39173-2ESE2 | OSAUPAUS6B1A | OSAUPAUF6B9A | |
| -IMMO | 4WD | 39173-2ESJ2 | OSAUPBUS6B1A OSAUPBUS6B1B |
OSAUPBUF6B9A | |
| 21MY Kona (OS) | +IMMO | 2WD | 39171-2ESE3 | OSBUPAAS6B6A | OSBUPAAF6B9A |
| +IMMO | 4WD | 39171-2ESJ3 | OSBUPBAS6B6A | OSBUPBAF6B9A | |
| -IMMO | 2WD | 39173-2ESE3 | OSBUPAUS6B6A | OSBUPAUF6B9A | |
| -IMMO | 4WD | 39173-2ESJ3 | OSBUPBUS6B6A | OSBUPBUF6B9A | |
If the Automatic ECU Upgrade process fails, cycle the ignition key to OFF for at least 30 seconds to reset the control unit. Then resume programming using the Manual ECU Upgrade processes.
After the ECU Upgrade process shows 100% complete, cycle the ignition key again to OFF for at least 30 seconds to reset the control unit. This step is important for establishing normal powertrain communication and to prevent system errors.
MODE PASSWORD INFORMATION TABLE: #801 19MY Kona (OS) 2.0L
MODE PASSWORD INFORMATION
| ECU MENU (#801) | PASSWORD |
|---|---|
| OS 19MYNU 2.0ATK 6AT +IMMO 2WD 39171-2ESE1 | 0101 |
| OS 19MYNU 2.0ATK 6AT +IMMO 4WD 39171-2ESJ1 | 0102 |
| OS 19MYNU 2.0ATK 6AT -IMMO 2WD 39171-2ESE1 | 0103 |
| OS 19MYNU 2.0ATK 6AT -IMMO 4WD 39171-2ESJ1 | 0104 |
MODE PASSWORD INFORMATION TABLE: #802 19-20MY Veloster (JS) 2.0L
MODE PASSWORD INFORMATION
| ECU MENU (#802) | PASSWORD |
|---|---|
| JS 19MYNU 2.0ATK 6MT -IMMO 2WD 39176-2EJW0 | 0202 |
| JS 19MYNU 2.0ATK 6AT +IMMO 2WD 39170-2EJW0 | 0203 |
| JS 19MYNU 2.0ATK 6AT -IMMO 2WD 39172-2EJW0 | 0204 |
| JS 20MYNU 2.0ATK 6AT +IMMO 2WD 39170-2EJW1 | 0205 |
| JS 20MYNU 2.0ATK 6AT -IMMO 2WD 39172-2EJW1 | 0206 |
| JS 20MYNU 2.0ATK 6MT -IMMO 2WD 39176-2EJW1 | 0208 |
MODE PASSWORD INFORMATION TABLE: #803 19MY Elantra (AD) 2.0L
MODE PASSWORD INFORMATION
| ECU MENU (#803) | PASSWORD |
|---|---|
| AD PE 19MY NU 2.0 ATK 6AT+IMMO 2WD 39171-2EFB5/D5 | 0301 |
| AD PE 19MY NU 2.0 ATK 6AT-IMMO 2WD 39173-2EFB5/D5 | 0302 |
| AD PE 19MY NU 2.0 ATK 6AT+IMMO 2WD 39171-2EFC5/E5 | 0303 |
| AD PE 19MY NU 2.0 ATK 6AT-IMMO 2WD 39173-2EFC5/E5 | 0304 |
| AD PE 19MY NU 2.0 ATK 6MT-IMMO 2WD 39177-2EFA5 | 0306 |
MODE PASSWORD INFORMATION TABLE: #808 21MY VELOSL TER (JS) 2.0L
MODE PASSWORD INFORMATION
| ECU MENU (#808) | PASSWORD |
|---|---|
| JS 21MY NU 2.0 ATK 6AT2 +IMMO 2WD 39171-2EJW2 | 8081 |
| JS 21MY NU 2.0 ATK 6AT2 -IMMO 2WD 39173-2EJW2 | 8082 |
| JS 21MY NU 2.0 ATK 6MT2 -IMMO 2WD 39177-2EJW2 | 8084 |
MODE PASSWORD INFORMATION TABLE: #809 20MY Elantra (AD) 2.0L
MODE PASSWORD INFORMATION
| ECU MENU (#809) | PASSWORD |
|---|---|
| AD PE 2.0 AKT CVT +IMMO 2WD 39170-2EFG5/J5 | 8091 |
| AD PE 2.0 AKT CVT -IMMO 2WD 39172-2EFG5/J5 | 8092 |
| AD PE 2.0 AKT CVT +IMMO 2WD 39170-2EFH5/K5 | 8093 |
| AD PE 2.0 AKT CVT -IMMO 2WD 39172-2EFH5/K5 | 8095 |
MODE PASSWORD INFORMATION TABLE: #752 20-21MY Kona (OS) 2.0L
MODE PASSWORD INFORMATION
| ECU MENU (#752) | PASSWORD |
|---|---|
| OS 20MY +IMMO 2WD 39171-2ESE2 | 3910 |
| OS 20MY +IMMO 4WD 39171-2ESJ2 | 3911 |
| OS 20MY -IMMO 2WD 39173-2ESE2 | 3912 |
| OS 20MY -IMMO 4WD 39173-2ESJ2 | 3913 |
| OS 21MY +IMMO 2WD 39171-2ESE3 | 3914 |
| OS 21MY +IMMO 4WD 39171-2ESJ3 | 3915 |
| OS 21MY -IMMO 2WD 39173-2ESE3 | 3916 |
| OS 21MY -IMMO 4WD 39173-2ESJ3 | 3917 |
NOTE:
After the ECU update has been completed:
- Clear any ECM DTC(s) after the ECU update, if present.
- Start the engine to confirm proper operation of the vehicle
