Circuit Diagram

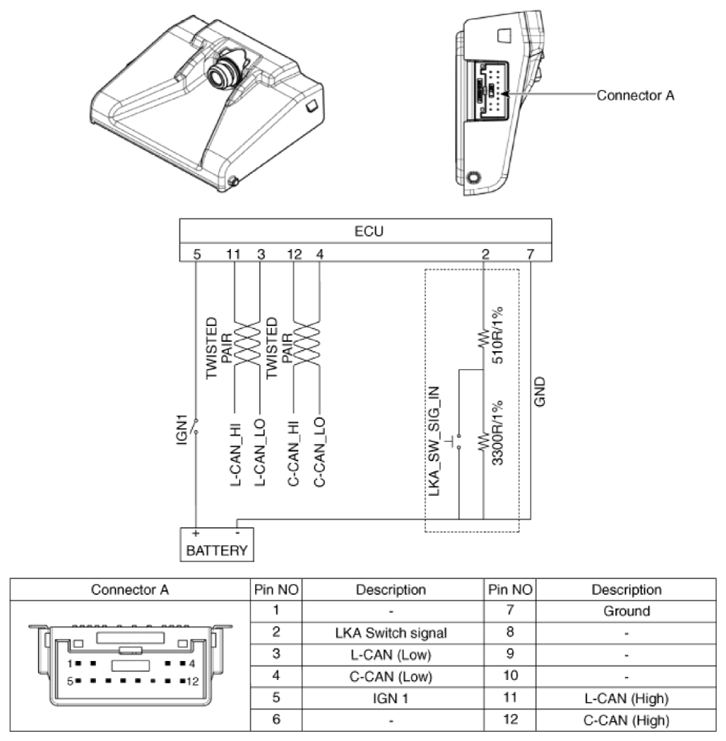

Fig 1: Front View Camera Unit Connector End View And Terminal Description
G14702665Courtesy of HYUNDAI MOTOR AMERICA
