Repair Procedures: Disassembly

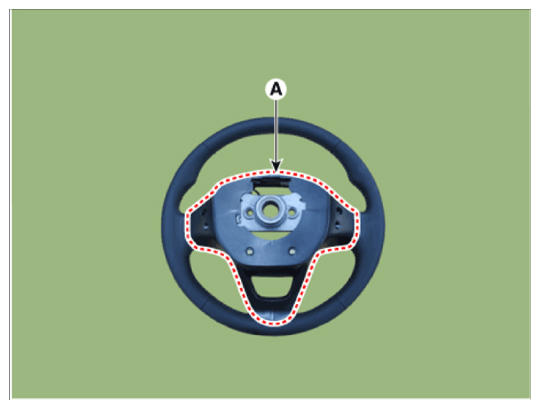

  1. Loosen the screw and then remove the lower cover (A).
    G14695136Courtesy of HYUNDAI MOTOR AMERICA

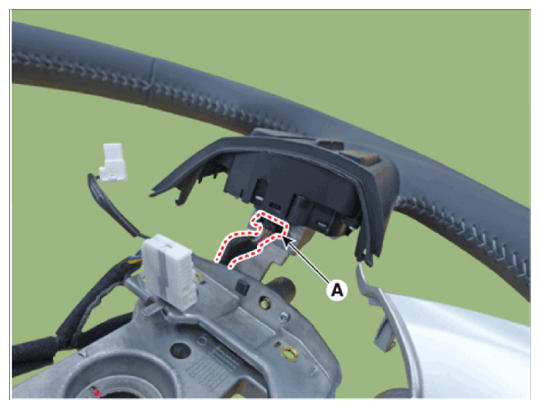

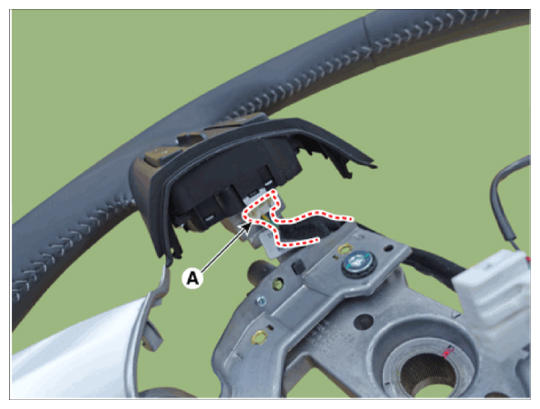

  2. Disconnect the remote control switch connector (A).
    G14695137Courtesy of HYUNDAI MOTOR AMERICA
    G14695138Courtesy of HYUNDAI MOTOR AMERICA

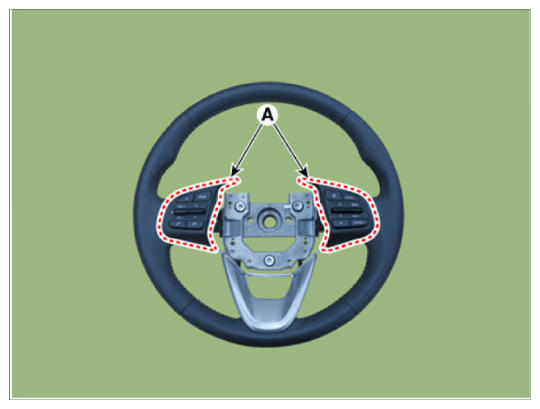

  3. Loosen the screw and then remove the remote control switch (A).
    G14695139Courtesy of HYUNDAI MOTOR AMERICA

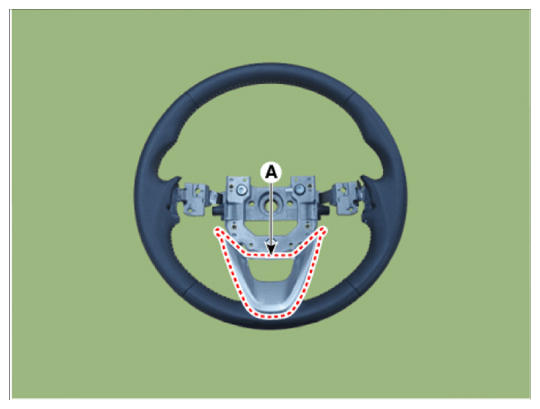

  4. Loosen the screw and then remove the steering wheel bezel (A).
    G14695140Courtesy of HYUNDAI MOTOR AMERICA
