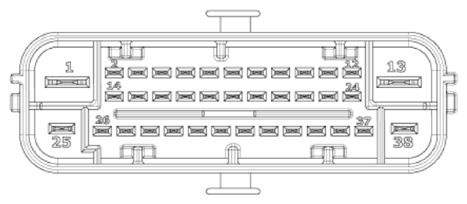

Terminal Function

Courtesy of HYUNDAI MOTOR AMERICA

Pin No	Description	Current (AMPS)	Resistance (MΩ)
1	POS. BATTERY 2. (MOTOR)	40A	10
2	-
3	-
4	C-CAN Low	100 mA	250
5	C-CAN High	100 mA	250
6	-
7	P-CAN Low	100 mA	250
8	P-CAN High	100 mA	250
9	SENSOR REAR LEFT POWER	150 mA	250
10	SENSOR REAR RIGHT POWER	150 mA	250
11	SENSOR FRONT RIGHT POWER	150 mA	250
12	SENSOR FRONT LEFT POWER	150 mA	250
13	PUMP MOTOR GROUND	40A	10
14	-
15	CLUTCH SWITCH SIGNAL	1.2 mA	250
16	-
17	ESP ON/OFF SWITCH SIGNAL	1.2 mA	250
18	-
19	PARKING BRAKE SWITCH	1.2 mA	250
20	-
21	SENSOR REAR LEFT GROUND	40 mA	250
22	SENSOR REAR RIGHT GROUND	40 mA	250
23	SENSOR FRONT RIGHT GROUND	40 mA	250
24	SENSOR FRONT LEFT GROUND	40 mA	250
25	BATTERY (+): SOLENOID	30A	10
26	-
27	-
28	-
29	-
30	BRAKE LIGHT SWITCH	1.2 mA	250
31	-
32	IGN	10 mA	50
33	-
34	HAC/BLA SIGNAL OUTPUT	1.2 mA	250
35	ESS SINGLA OUTPUT	1.2 mA	250
36	-
37	SENSOR FRONT RIGHT OUTPUT	50 mA	250
38	GROUND	30A	10
