Components & Components Location: Components

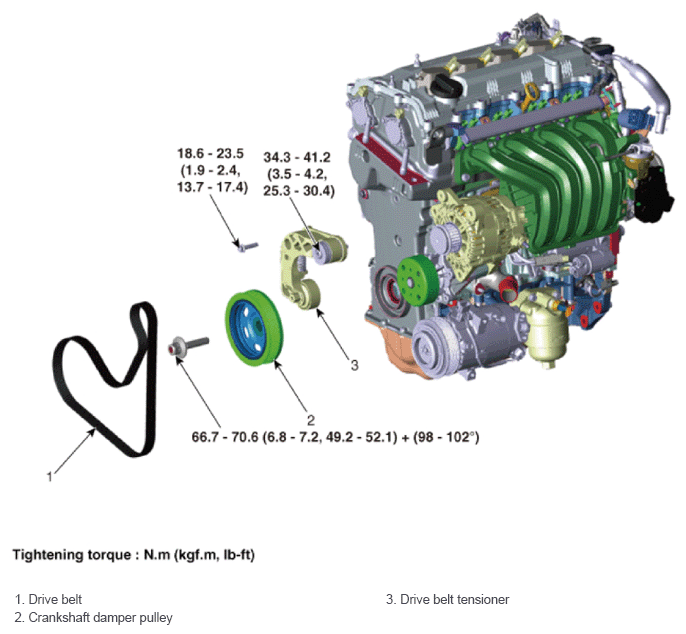

Fig 1: Timing System Components Location With Torque Specification (1 Of 2)
G14693803Courtesy of HYUNDAI MOTOR AMERICA

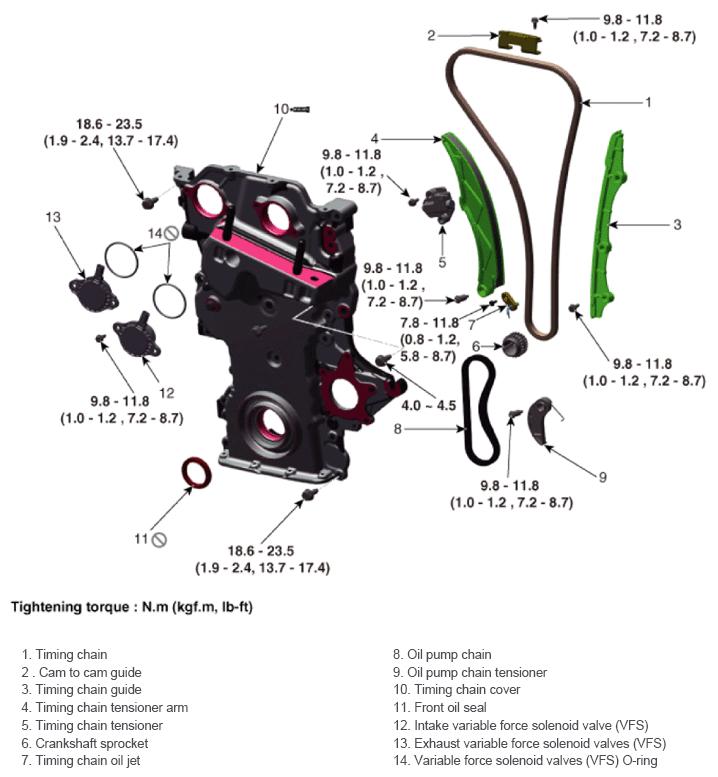

Fig 2: Timing System Components Location With Torque Specification (2 Of 2)
G14693804Courtesy of HYUNDAI MOTOR AMERICA
