Repair Procedures: Inspection

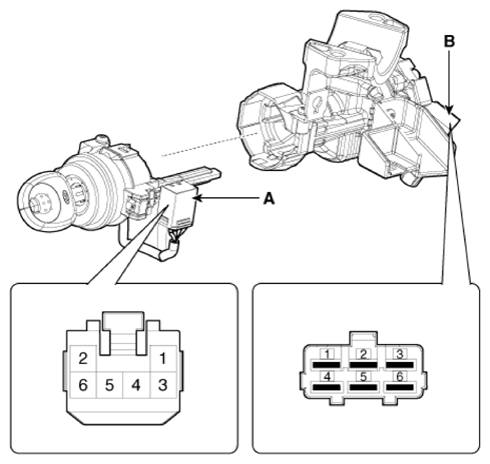

  1. Disconnect the ignition switch connector (B) and key warning switch connector (A) from under the steering column.
    G14078944Courtesy of HYUNDAI MOTOR AMERICA

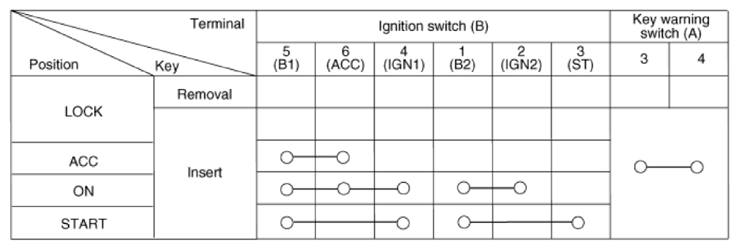

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
    G14078945Courtesy of HYUNDAI MOTOR AMERICA
