Repair Procedures: Disassembly

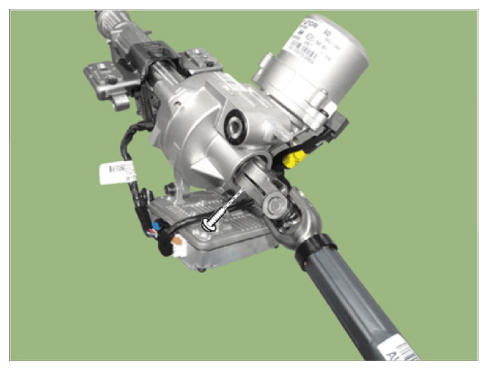

- Loosen the bolt (A) and then disconnect the universal joint assembly from the steering column assembly.
Tightening torque:
49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 39.8 - 43.4 lb-ft)
NOTE:- Do not reuse the universal joint bolt.

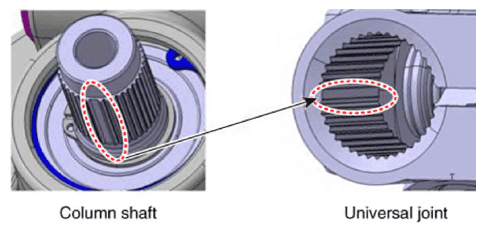

- When assembling, match the gear teeth as shown in illustration below.
- To reassembly, reverse the disassembly procedure.
- Reassembly is the reverse of the disassembly.
